HAKRC 32BIT 65A Blheli_32 2-8S 4In1 Brushless ESC 30.5 * 30.5Mm for RC FPV Racing Drone
£47.65
HAKRC 32BIT 65A BLHeli_32 2-8S 4in1 Brushless ESC
Product Features:
1. PCB adopts high-end 6-layer 3oZ thickened copper skin, the application of high-end resin jack PCB production process, double pad design, stronger overcurrent ability, good heat dissipation.
2. MOS adopts imported 4OV high flow resistance mos. Long life and strong load capacity
3. Industrial grade LDO, high temperature resistance.
4. High quality Japanese Murata capacitor, strong filtering performance
Small size and full function, real-time monitoring of motor speed and temperature

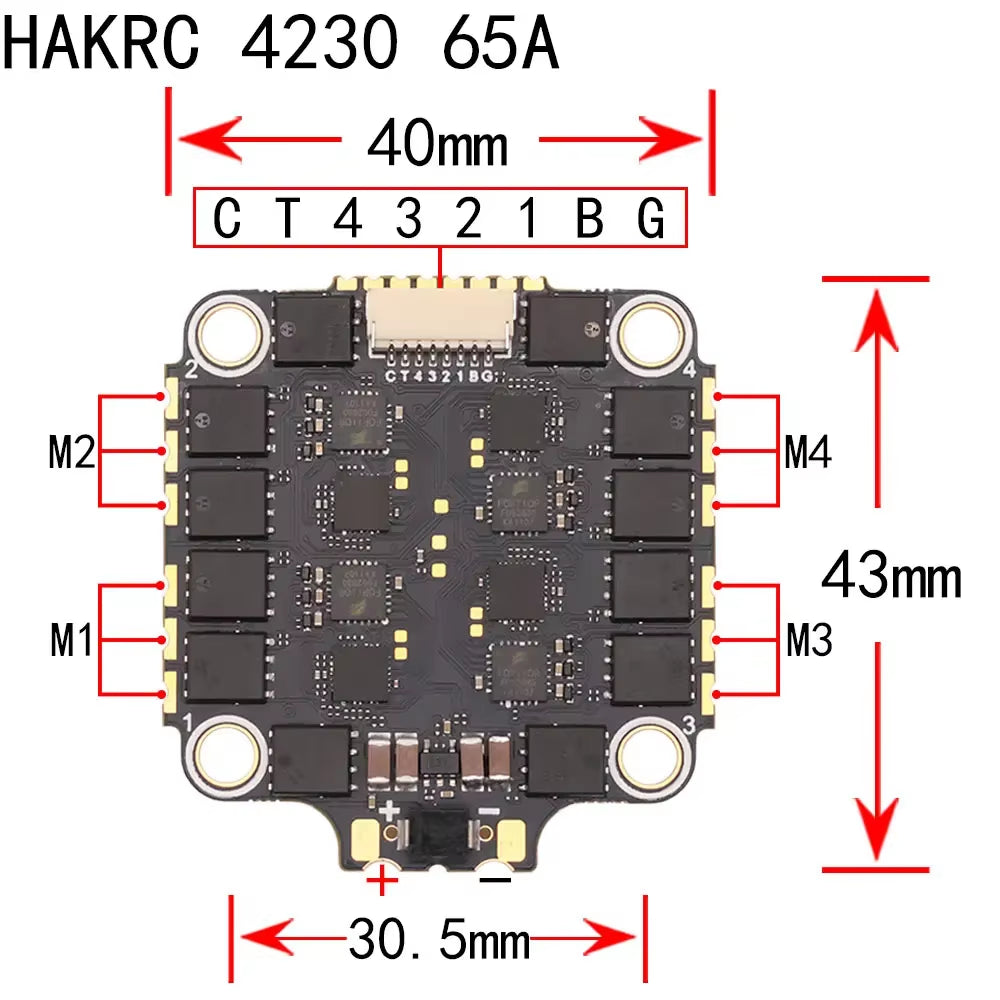

Size: 40*43mm (30.5mm*30.5mm mounting hole)
Support electrical telemetry data map transmission
Packing size: 64*64*35mm
Net weight: 14g
Packing weight: 53g
Electrical Parameters:
Power firmware: HAKRC_AT4GMuIti32.9Hex
Protocol support: PWM,Oneshot125, Oneshot42. Multishot. Dshot150. Dshot300. Dshot600
Input voltage: 2S-8SLipo
Galvanometer ratio: 160
Continuous current: 65A
Peak current: 75A
High Quality Hardware:
Japan imported MOS, 3-in-1 IC drive FD6288Q drive, imported high-quality Murata capacitors, the application of high-end resin plug PCB production process
The pads are metallized, so that you can avoid falling off the pads when using: 3 ounces of copper thick, 6 layers of plates, greatly reduced heat: higher efficiency
Hardware: PWM, DampedLight
Hardware PWM drive motor, low noise, smoother throttle response. DampedLight technology, regenerative braking function, makes the motor decelerate more
More sensitive and effective, more accurate control: active continuous flow technology, so that the battery recycling power, extend the flight time
