HAKRC F7220 V2 F7 Mini Flight Controller Dual BEC W/ 35/40/45/60/65A 4in1 ESC DShot150/300/600/1200 PWM for RC FPV Racing Drone

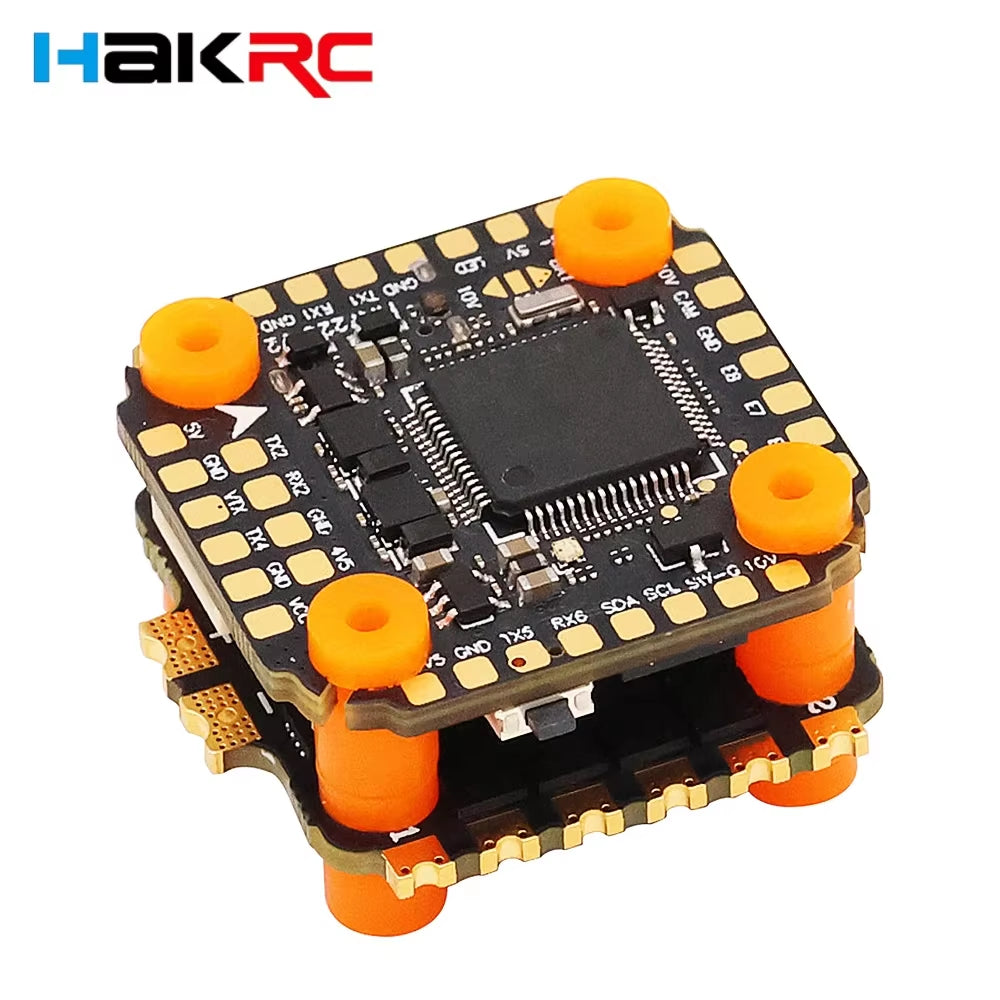

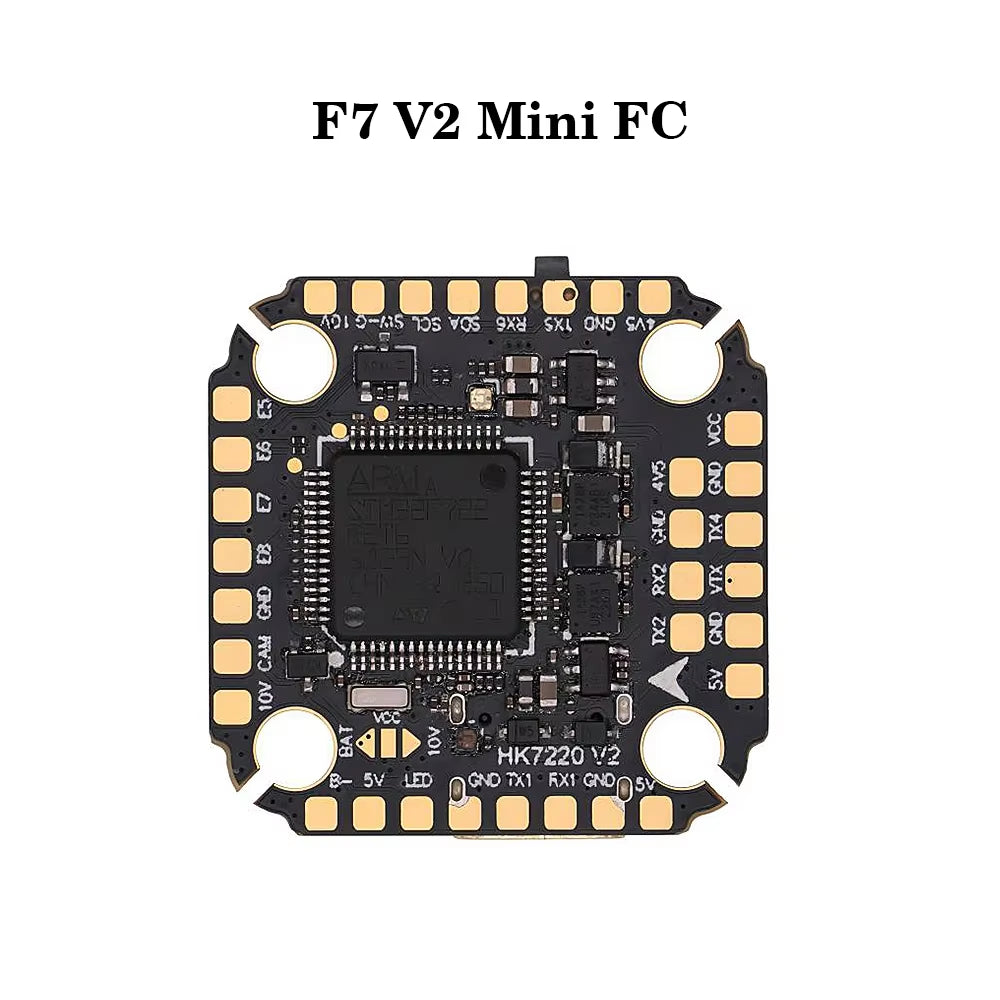

F7 V2 Mini FC

Flying control specifications:

  • Flying control size: 29x29mm

  • Blind control net weight: 6G

  • Installation hole distance: 20*20mm φ4mm

  • Processor: STM32F722RT6

  • Gyroscope: ICM42688 dual gyroscope

  • BEC: 5V/2A; 10V/2A

  • Reserve: 16MB

  • Input voltage: 2S-6S

  • Firmware: hakrcf722V2

  • UART serial port: 6

  • Support external programmable LED

  • Come with 6P sky -end seat




F7 V2 Mini With 35A ESC

  • Size: 31mm*30mm

  • Electricity Drise: 6G

  • fixed hole distance: 20mm*20mm P4MM

  • Continuous current: 35A

  • Maximum current: 40A (Sustainable 10s)

  • Input voltage: 2S-6S

  • Current ratio: 300

  • Support electrical remote test data diagram

  • Rathering software: blhelisuite16.7.14.9.0.3

  • Driver signal support: PWMONESHOT125, Oneshot42multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600


F7 V2 Mini With 40A ESC

  • Electric size: 31mm*29.5mm

  • Power purposes: 6G

  • fixed hole distance: 20mm*20mm in 4mm

  • Continuous current: 40A

  • Maximum current: 45A (Sustainable 10s)

  • Input voltage: 2S-6S

  • Current ratio: 300

  • Support electrical remote test data diagram

  • Rathering software: Blhelisuite32Activator 32.9.0.3

  • Driver signal support: PWM, Oneshot125, Oneshot42Multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600

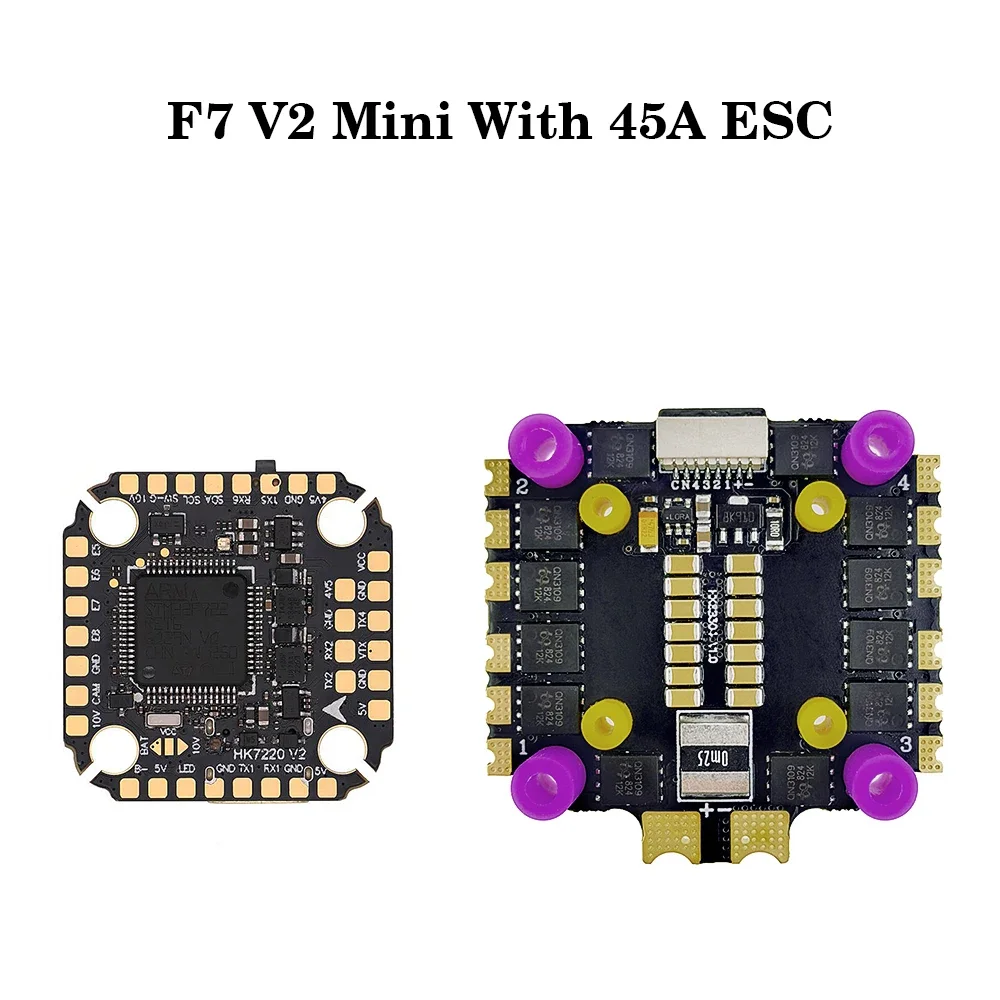

F7 V2 Mini With 45A ESC

  • Working Voltage: 2-6s

  • Maximum Continuous Work Current: 45A

  • Maximum operating current: 50A

  • Support Communication Mode: DSHOT150/300/600 PWM, Oneshot125, Oneshot42 and Multshot

  • Rathering Software: Blhelisuite

  • Fixedware version: bl16.7

  • Installed Hole Distance: 20*20mm / 30.5*30.5mm

  • Product size: 44*44*5.5mm

  • Packaging size: 62*58*18mm

  • Product network weight: 13.6g

  • Packaging weight: 27g

F7 V2 Mini With 60A ESC

  • Electric size: 34mm*42.5mm

  • Power purposes: 11g

  • Fixed hole distance: P4MM20mm*20mm

  • Continuous current: 60A

  • Maximum current: 70A (Sustainable 10s)

  • Input voltage: 2S-8S

  • Current ratio: 160

  • Support electrical remote test data diagram

  • Rathering software: Blhelisuite32Activator 32.9.0.3

  • Driver signal support: PWMONESHOT125, Oneshot42multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600


F7 V2 Mini With 65A ESC

  • Electric size: 34mm*42.5mm

  • Power net weight: 11GP4MM

  • Fixed hole distance: 20mm*20mm

  • Continuous current: 65A

  • Maximum current: 70A (Sustainable 10s)

  • Input voltage: 2S-8S

  • Current ratio: 90

  • Support electrical remote test data diagram

  • Rathering software: Blhelisuite32Activator 32.9.0.3

  • Driver signal support: PWMONESHOT125, Oneshot42multishot, DSHOT150, DSHOT300, DSHOT600, DSHOT600
