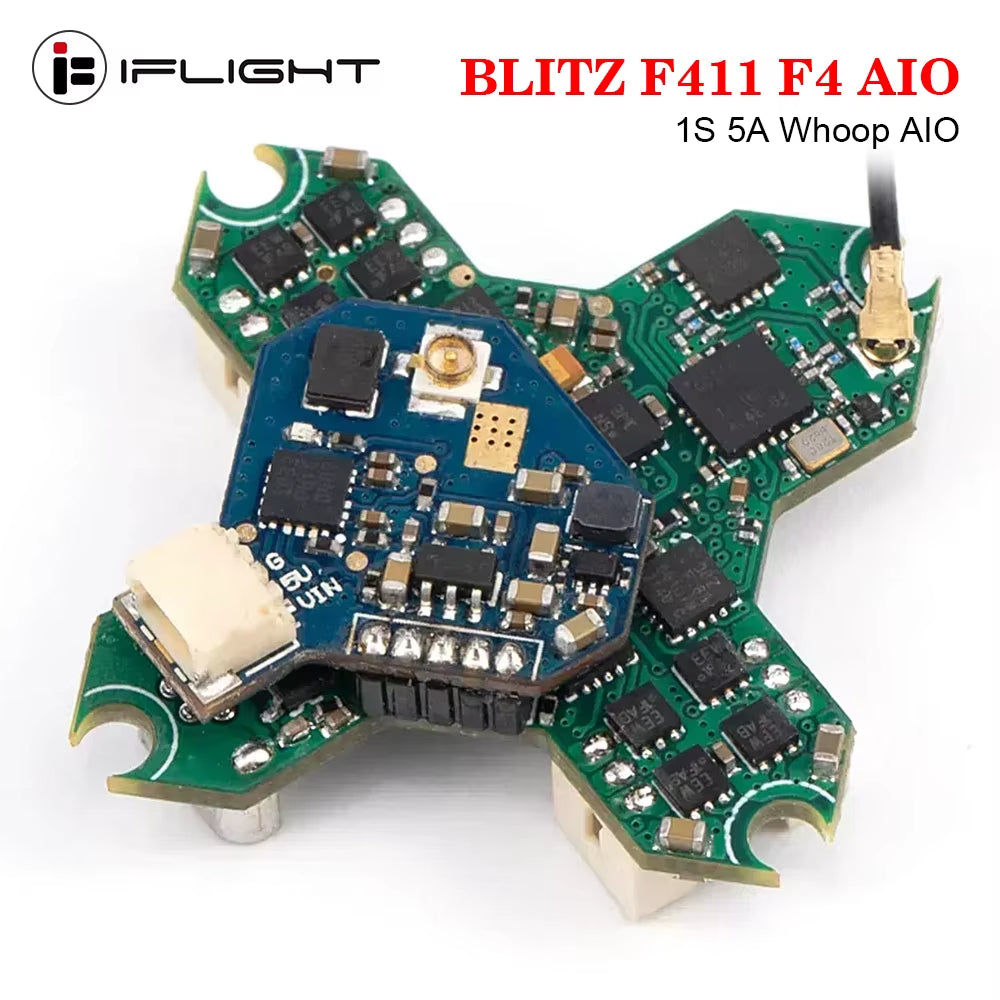

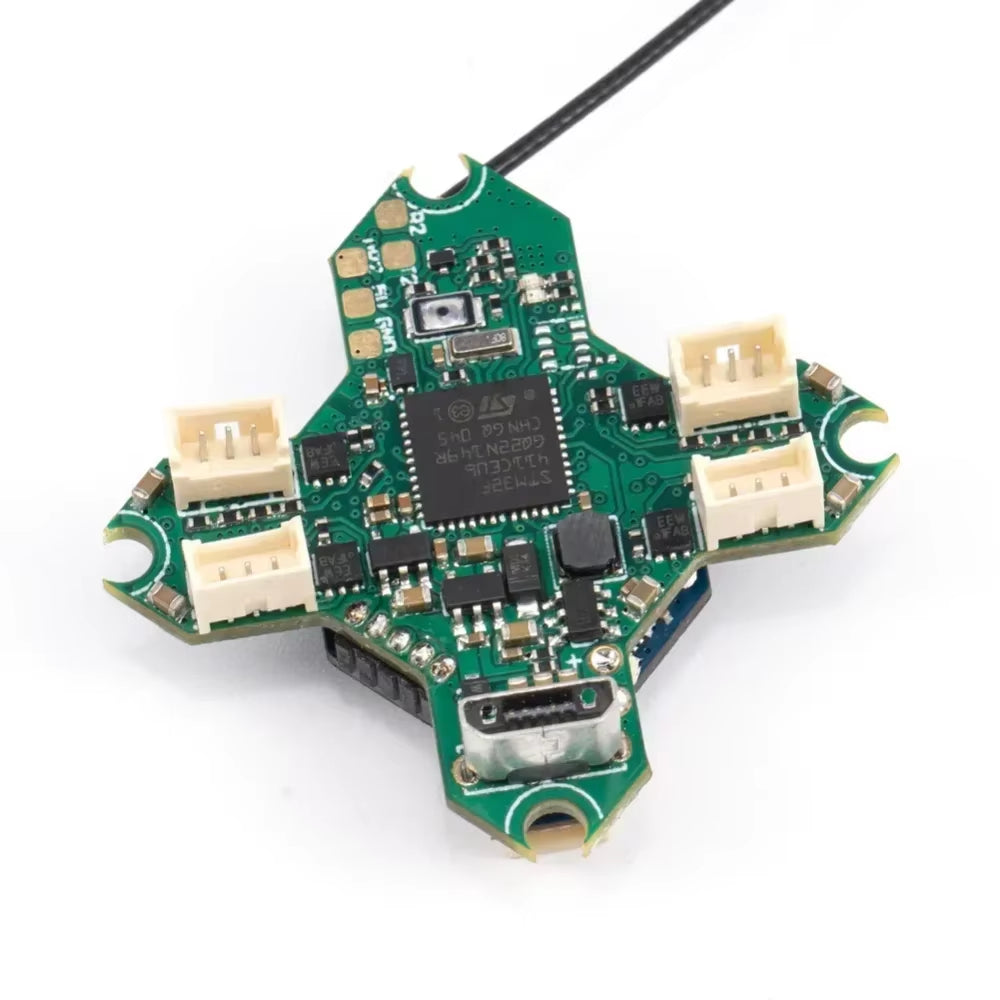

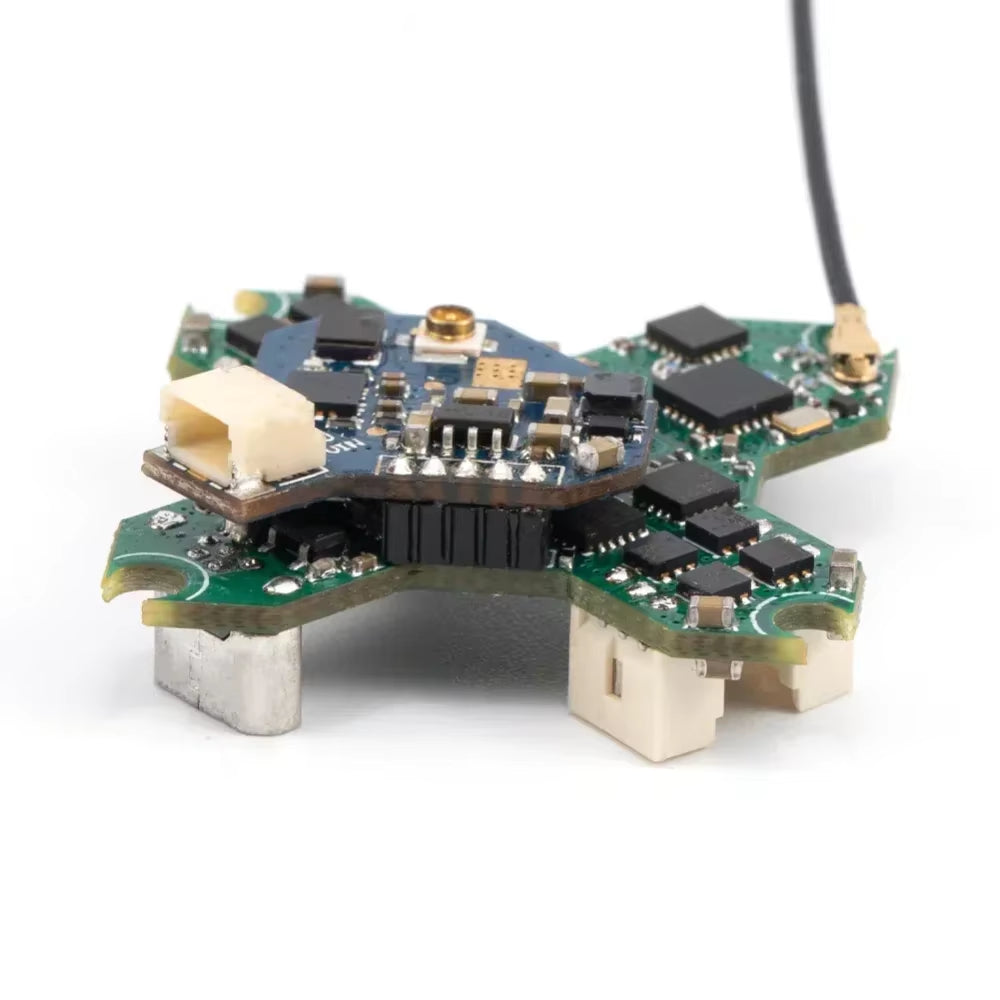

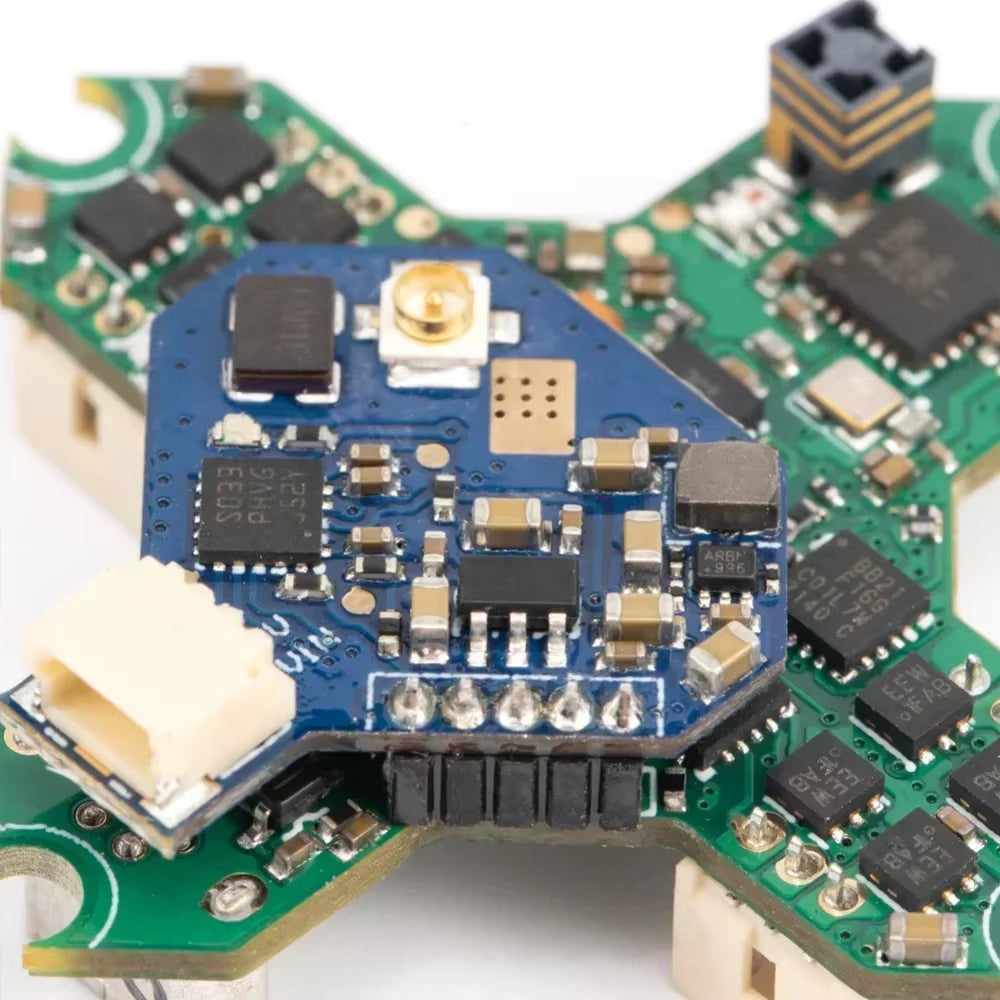

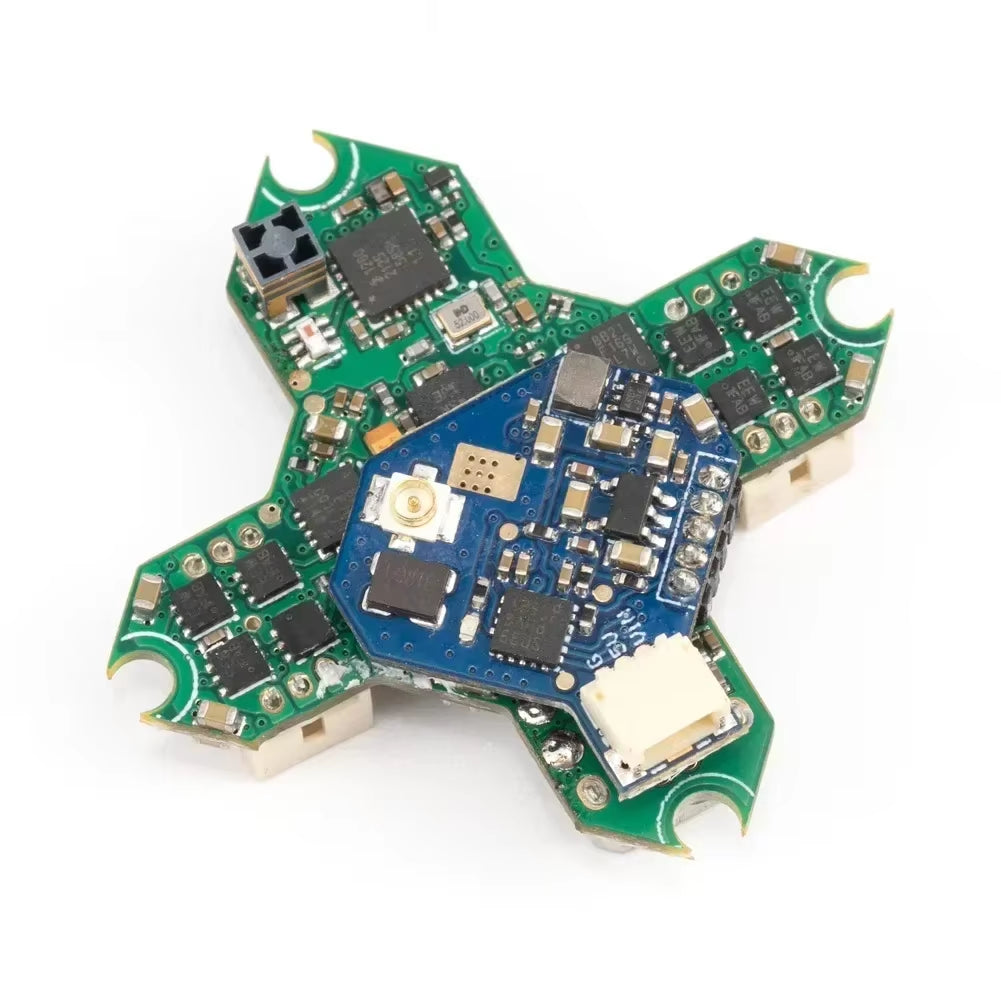

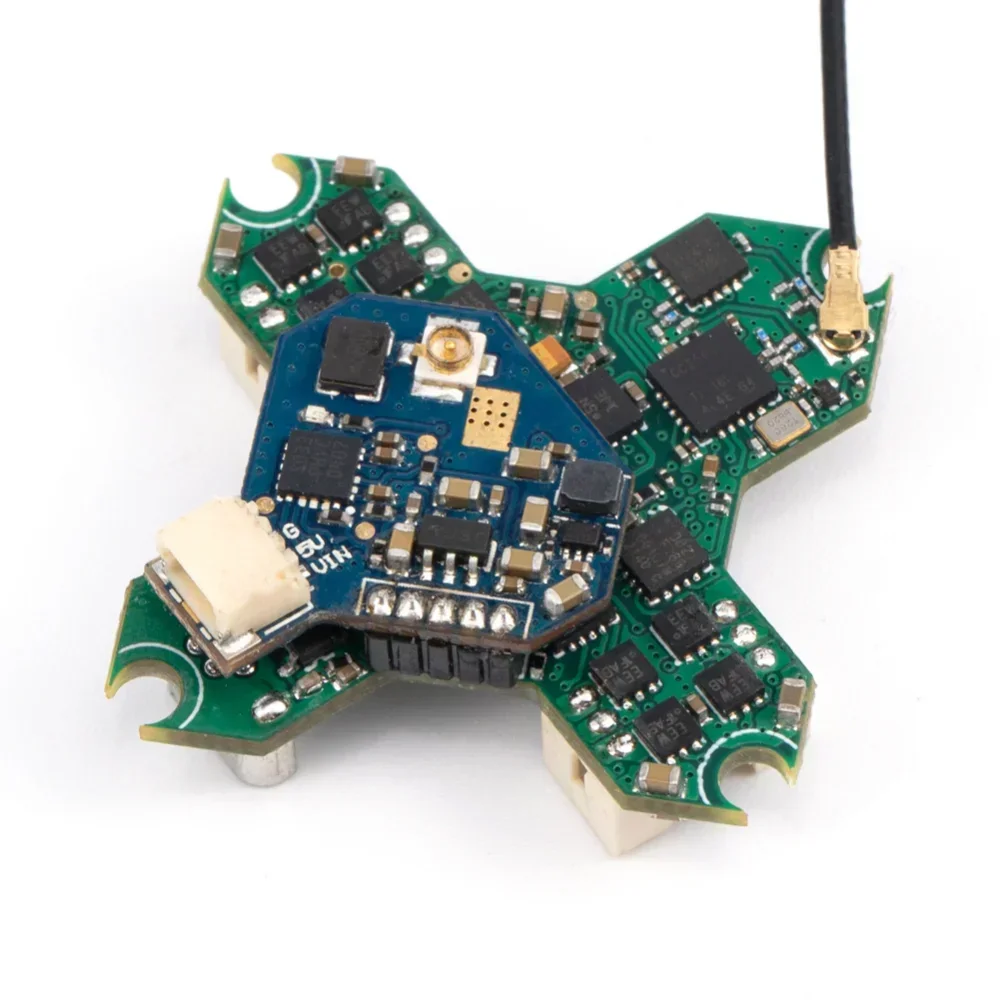

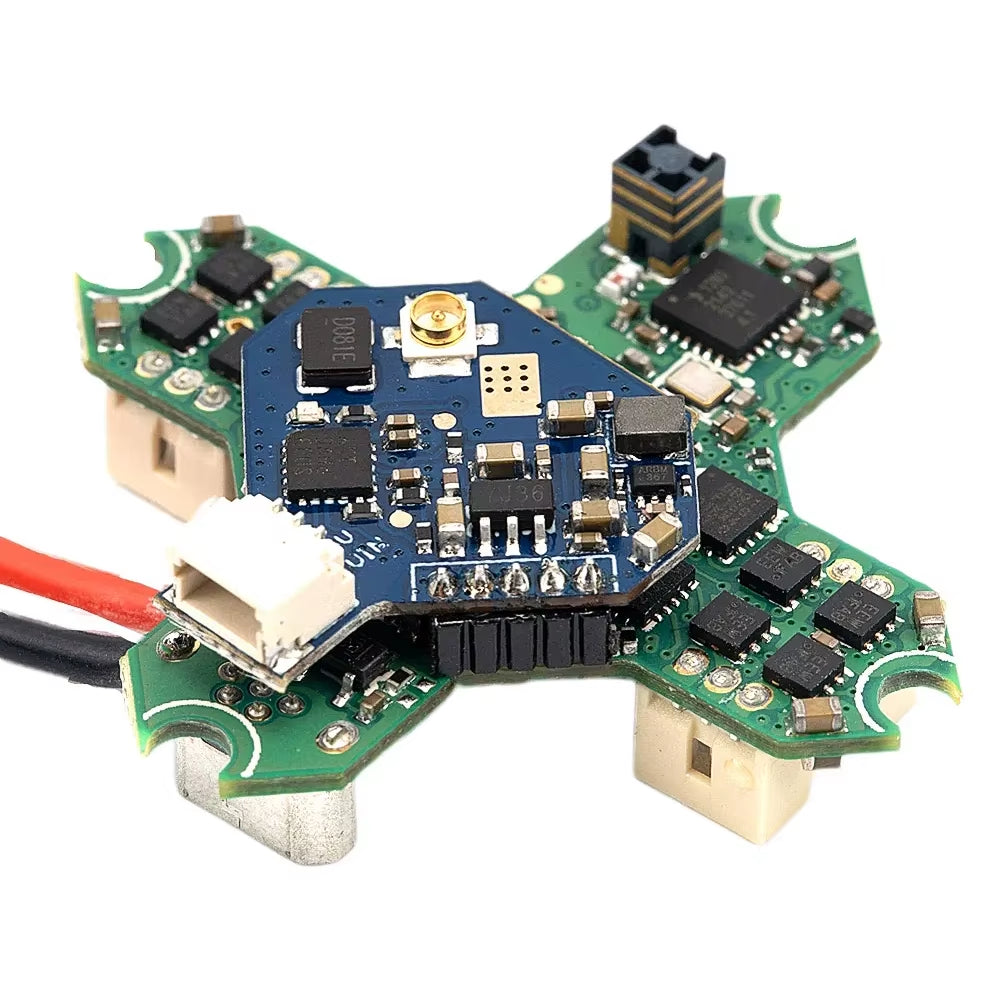

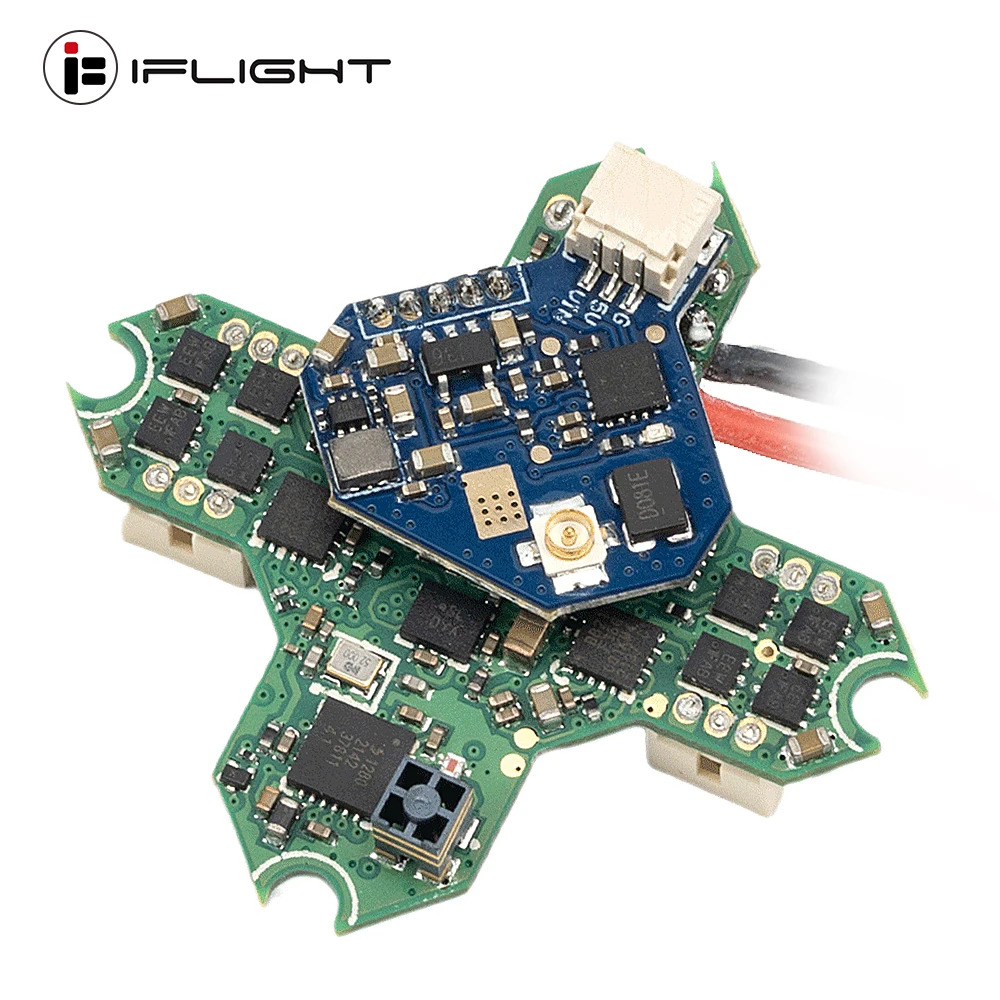

Iflight BLITZ F411 F4 1S 5A Whoop AIO Flight Controller 50Mw VTX Built-In ELRS 2.4G Receiver for RC FPV Racing Drone
£56.00
Product Description:
- 1. Lightweight, the overall weight is only 4.8g
- 2. BLheli-S ESC, 5A continuous current
- 3. STM32F411 MCU processor
- 4. BMI270 gyroscope
- 5. The default frequency parameter of the ESC is 16.8 96K, which enables more efficient and long-lasting flight.
- 6. Onboard ELRS 2.4GHz SPI receiver and onboard SMD antenna. Supports ELRS 2.4GHz protocol, and can also weld receivers of other protocols.
Product Parameters:
- Name: Star Fox BLITZ F411 1S 5A Whoop AIO onboard 2.4G CC2500 receiver (BMI270)
- External size: 29*29mm
- Hole size: 25.5*25.5mm/φ3mm-half hole
- USB Type: Micro-USB
- Weight: 4.8g (including power cord, image transmission and image transmission antenna)
- Supported receiver protocols: Built-in CC2500, SPI receiver, supports D8, S-FHSS protocols. Receivers of other protocols can also be welded.
- MCU:STM32F411
- Gyro:BMI270
- Blackbox:NO
- BEC output:5V 500mA
- INA pad:n uart2
- Barometer:no
- FC Firmware:IFLIGHT_BLITZ_F411RX
- ESC Parts:
- ESC current support: 5A (continuous), 6A (momentary)
- Current ratio: 400
- Voltage input: 1S
- ESC supports protocols: Dshot, Oneshot, Multishot
- Current sensor:yes
- BLHeli:BLHeli-S
- Telemetry:no
- ESC Firmware:Bluejay Q-H-50
- VTX Parts:
- Input voltage: 5V
- Channel number: 48CH
- Transmit power: PIT/25/50mW
- Antenna output mode: Image transmission UFL/receiver IPEX4
- Protocol: Smartaudio
- Star Fox BLITZ F411 1S 5A Whoop AIO × 1
