JHEMCU F722 NOXE Flight Controller Built-In Gyro Barometer OSD 16MB Blackbox Dual BEC 3-6S 20X20Mm for RC FPV Freestyle Drone
£22.62

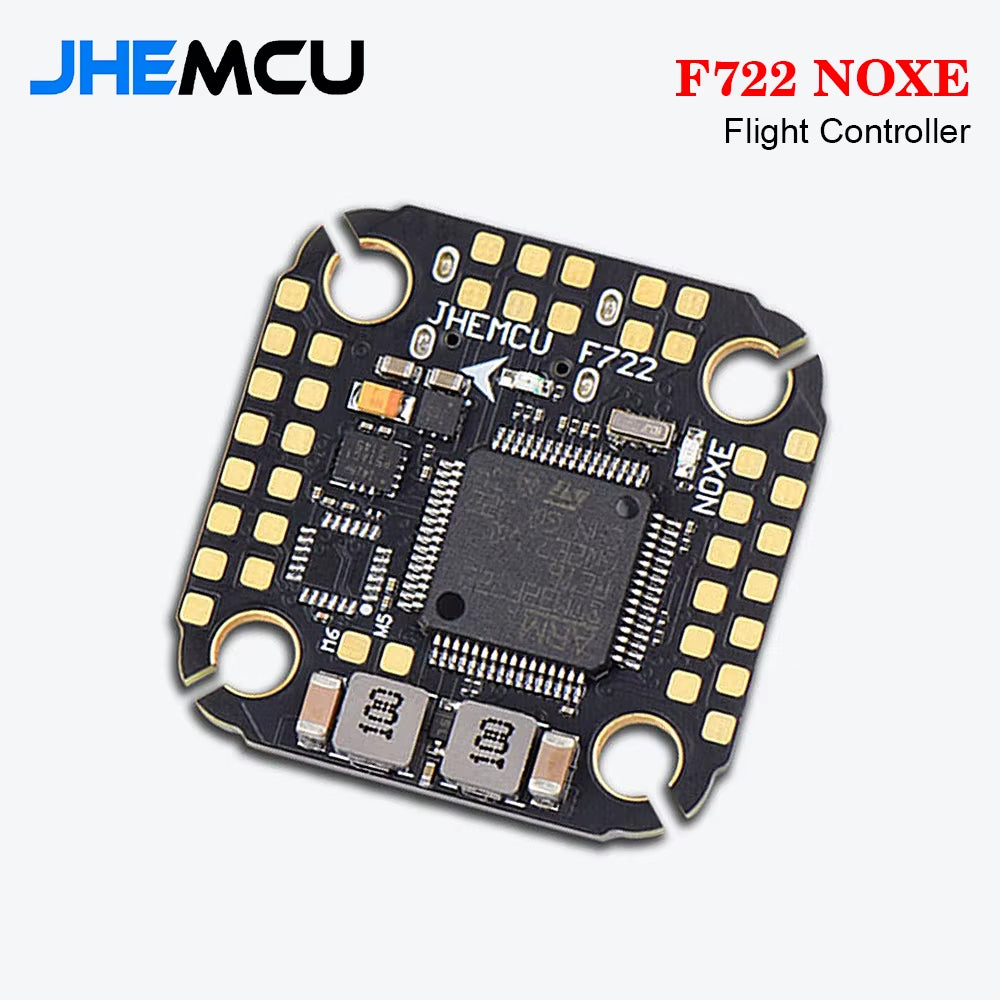

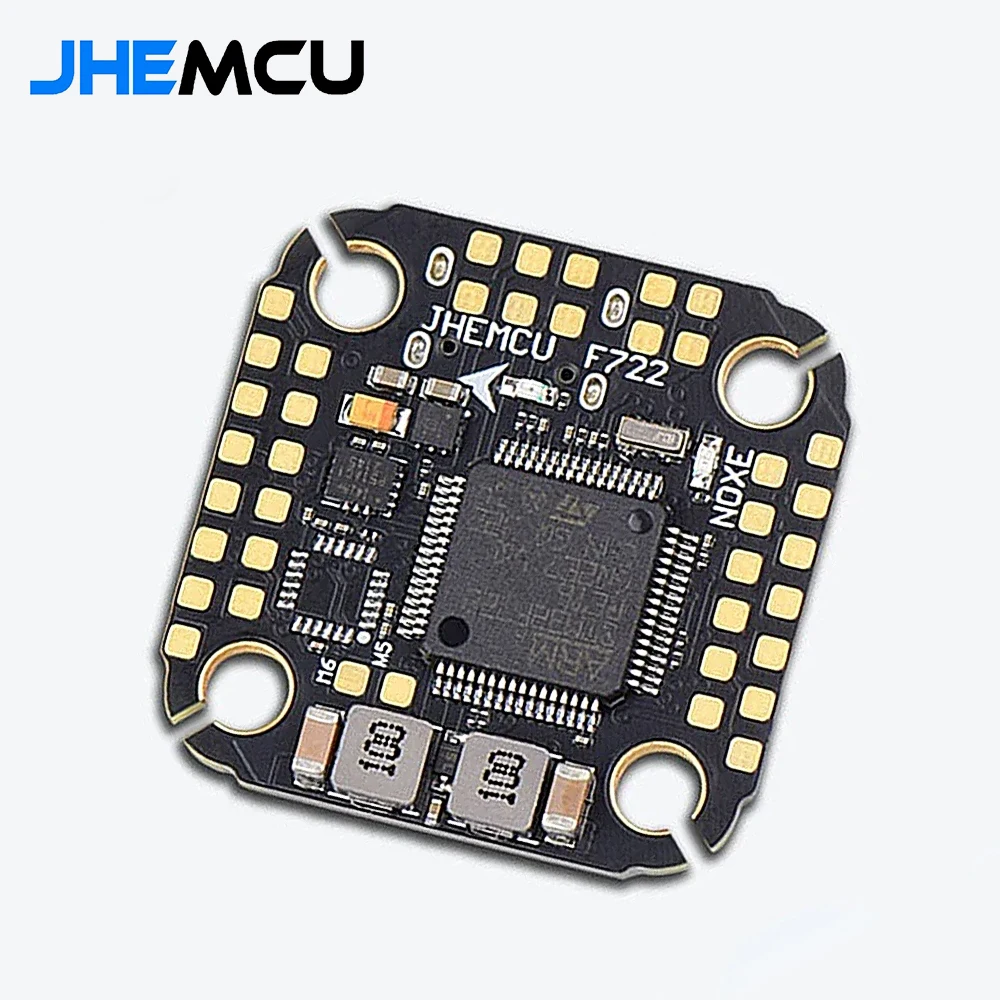

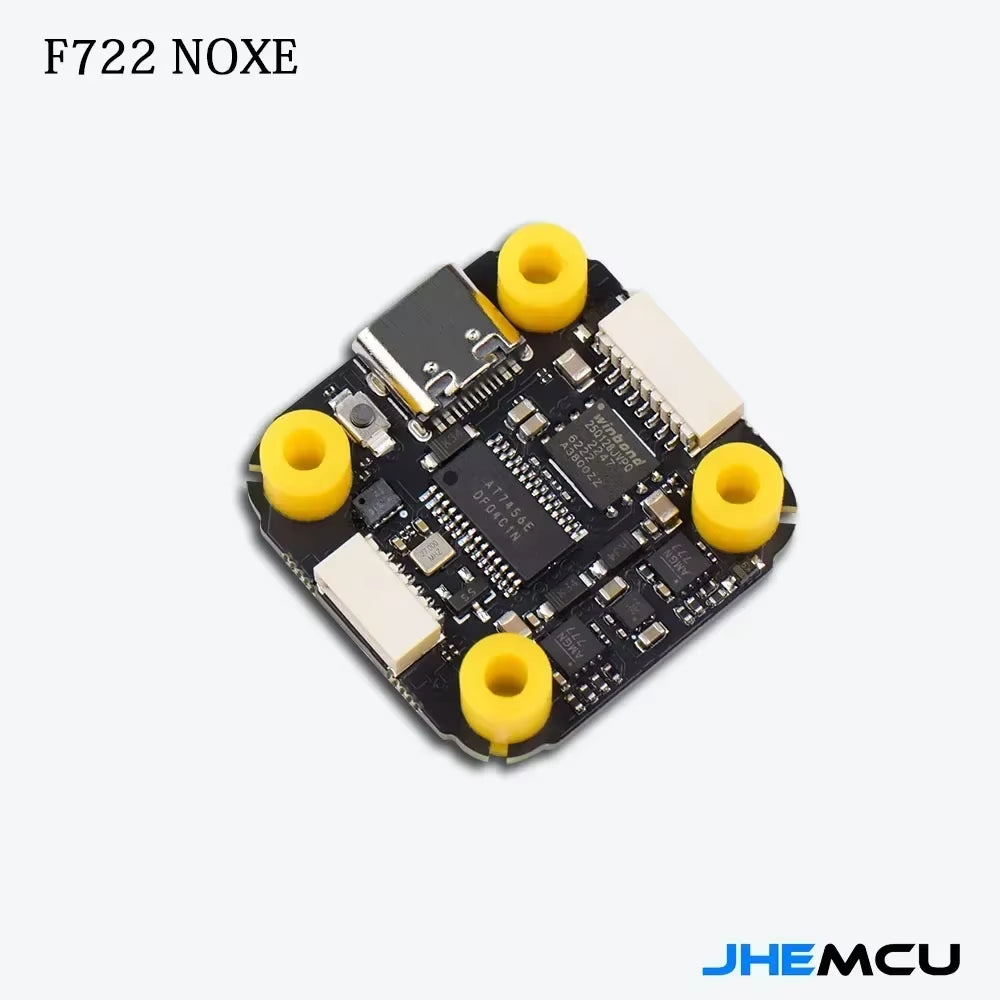

JHEMCU F722 NOXE

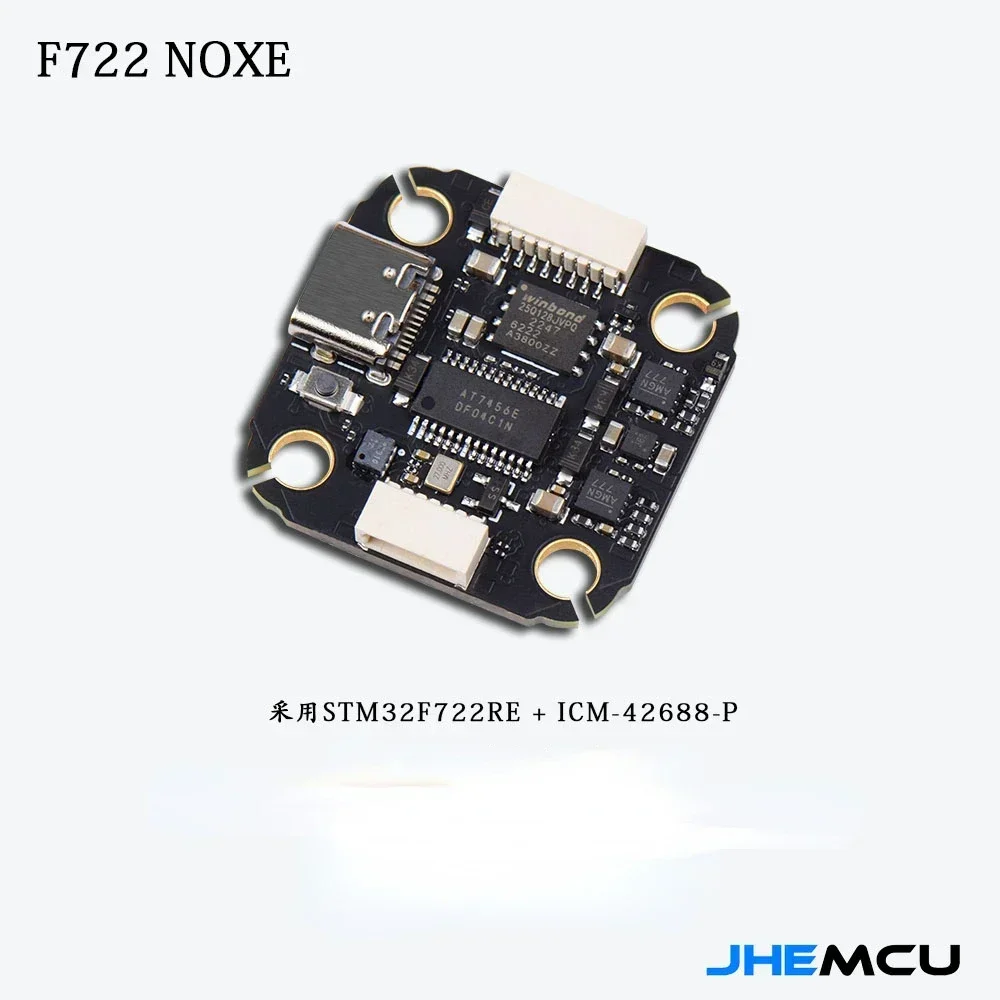

- Master: STM32F722RE(216 MHZ)

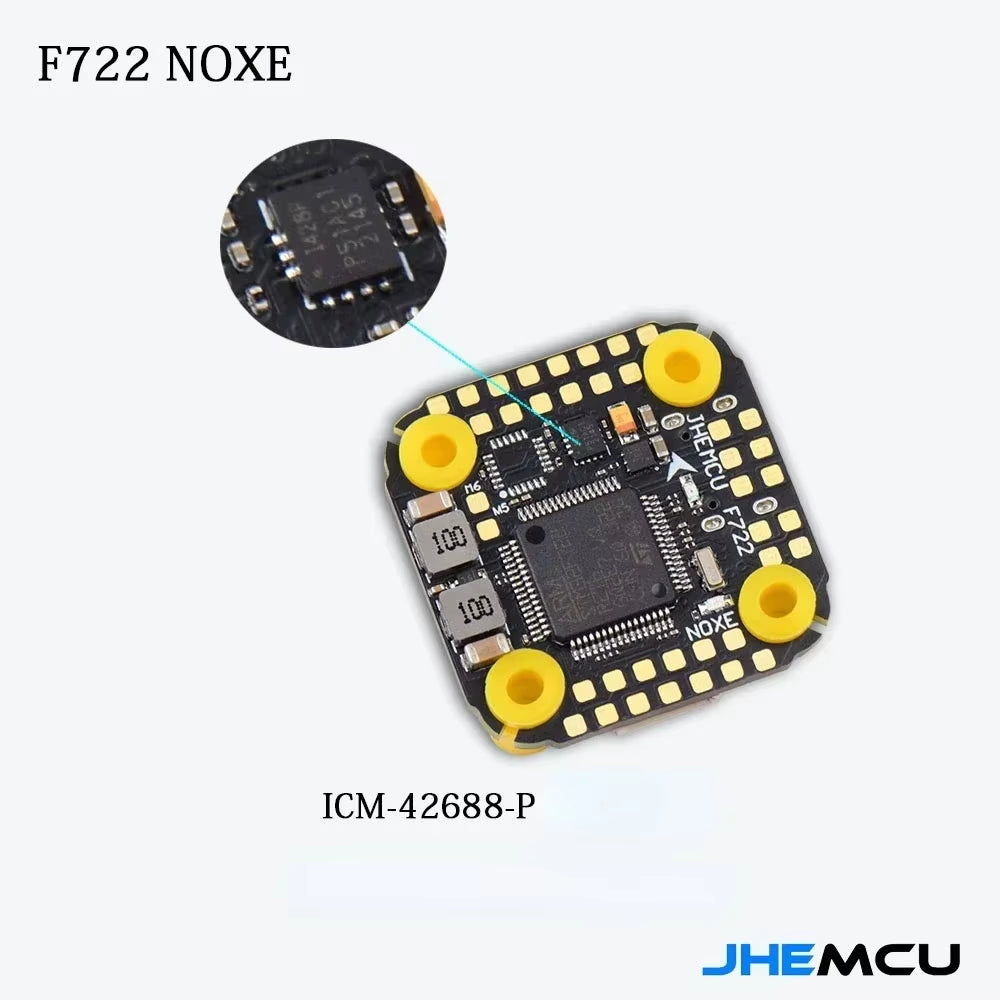

- Gyroscope: ICM-42688-P
- Barometer: DPS 310
- OSD Chip: AT7456E
- Black Box: 16MB
- LED Programming: Support
- Buzzer: Support
- Input Voltage: 3-6S
- I2C Interface: Support
- BEC: 5V/2.5A / 10V/2.0A
- Camera Input: Support
- UART: UART1,UART2,UART3,UART4,UART5,UART6
- Receiver: ELRS(CRSF). TBS(CRSF),SBUS,IBUS,DSM2,DSMX
- GPS: YES
- Compass: YES
- HD O3: YES
- ESC signal: Dshot 150, Dshot 300, Dshot 600
- USB: TYPE-C
- Current port: YES
- Voltage sensor: YES
- DFU button: YES
- Weight: 5g
- Firmware: betaflight_4.4.2_JHEF7DUAL.HEX

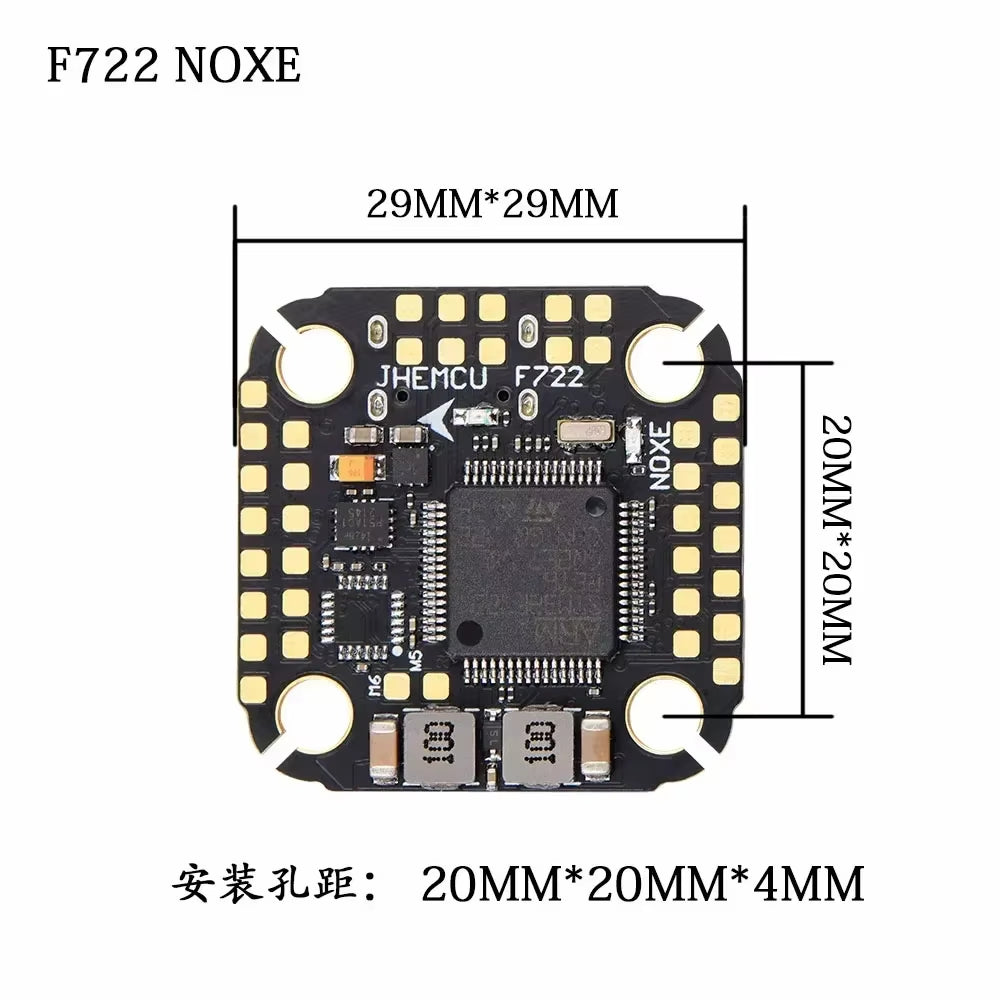

- Mounting hole distance: 20MM*20MM*4MM
- Dimension: 29MM*29MM
