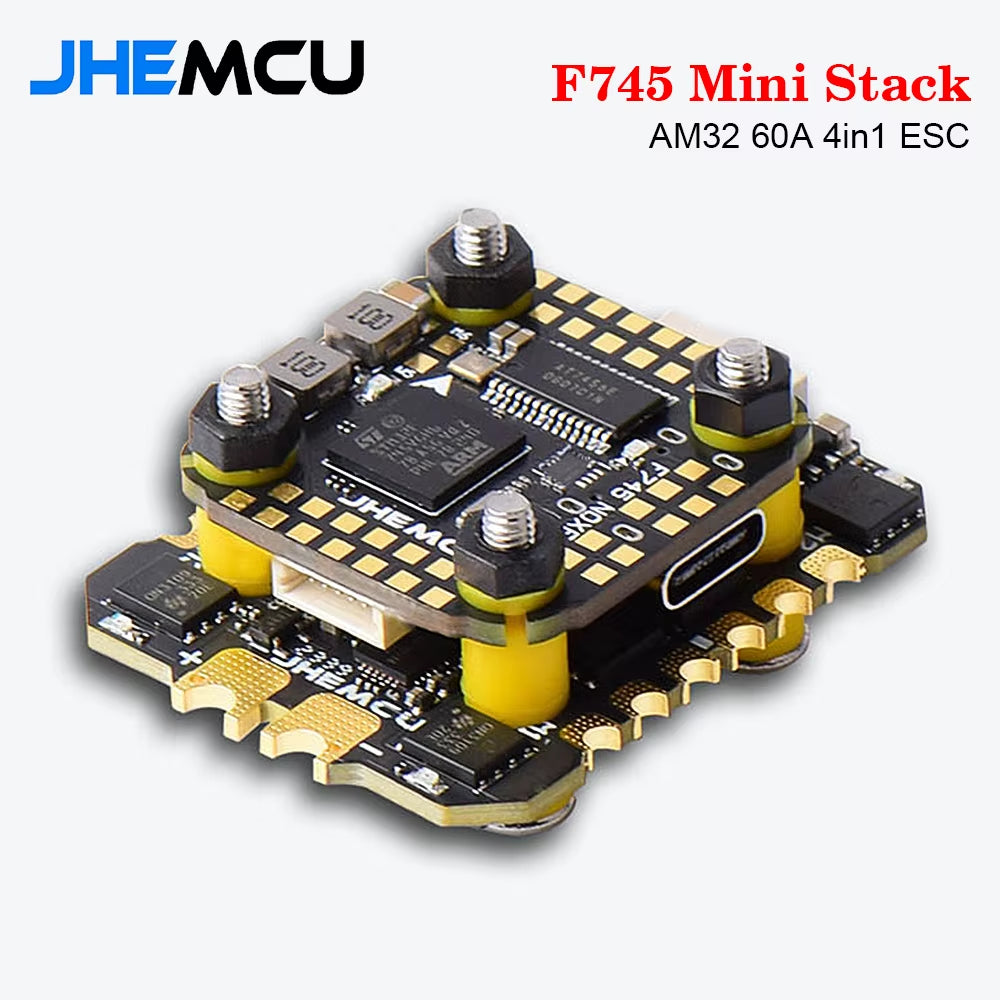

JHEMCU F745 Mini Flight Controller Stack ICM42688P F745 NOXE FC 16MB Black Box 60A 4in1 ESC AM32 3-6S for RC FPV Drone

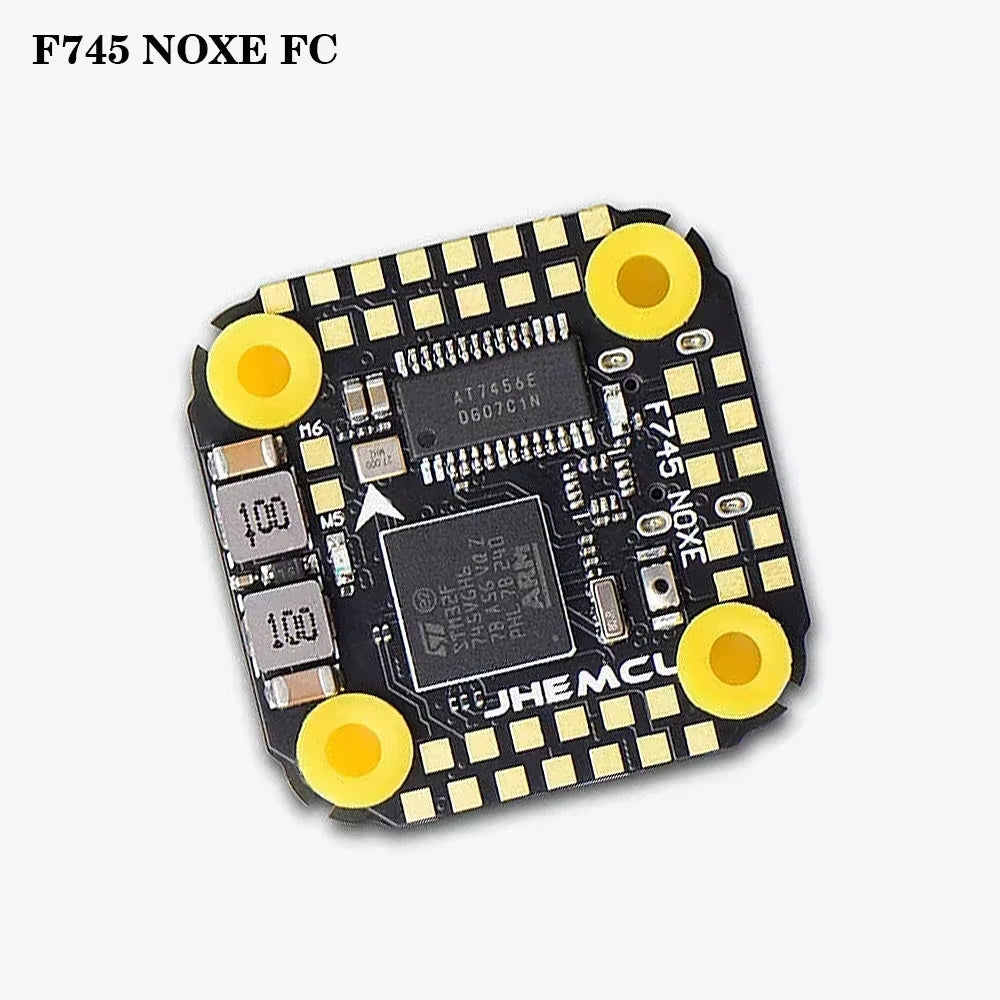

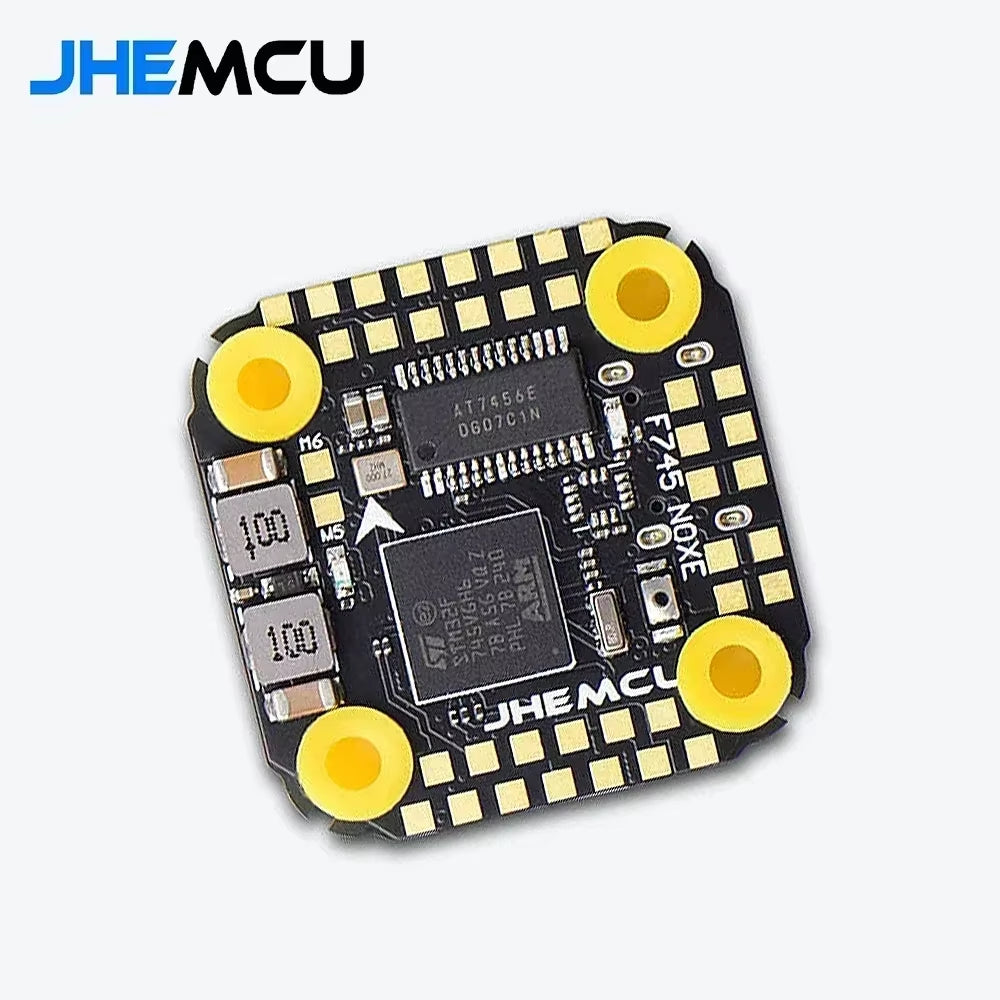

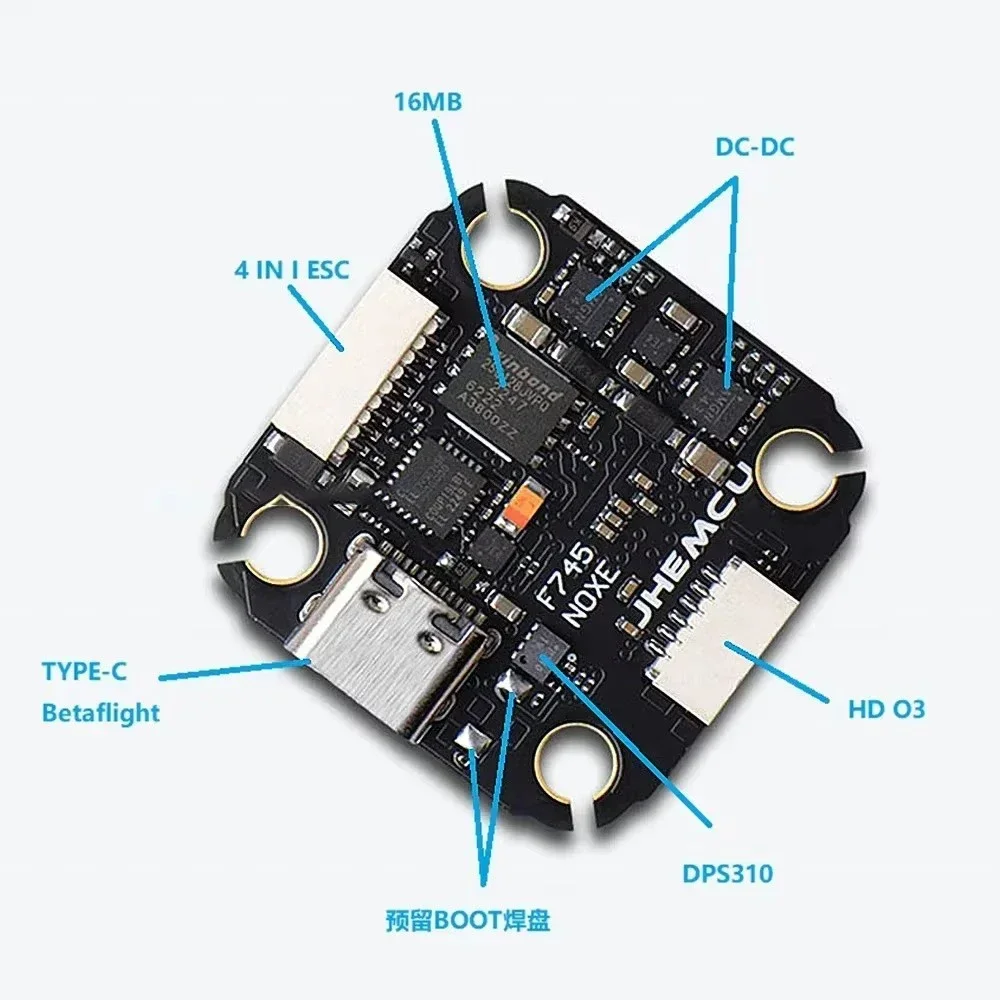

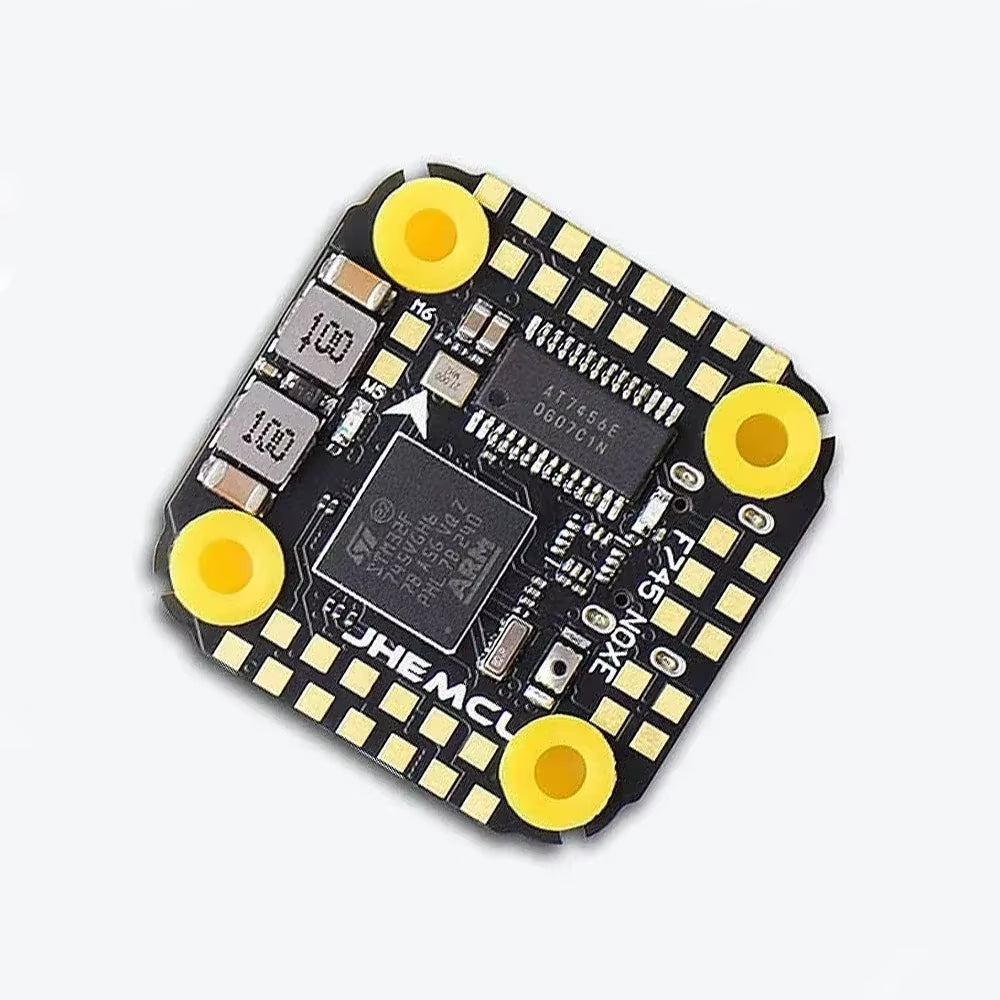

Model: F745 NOXE MINI
  • Master: STM32F745
  • Gyroscope: ICM42688P
  • Barometer: DPS310
  • OSD chip: AT7456E
  • Black Box: 16MB
  • LED Programming: Support
  • Buzzer: Support
  • Input Voltage: 3-6S
  • 2C Interface: Support
  • BEC:5V/2.5A
  • BEC: 10V/2.0A
  • Camera Input: Support
  • USART: UART1,UART2,UART3,UART4,UART5,UART6
  • Receiver: ELRS(CRSF), TBS(CRSF),SBUS,IBUS,DSM2,DSMX
  • GPS: YES
  • Compass: YES
  • HD O3: YES
  • ESC signal: Dshot150, Dshot300, Dshot600
  • USB: TYPE-C
  • Current port: YES
  • Voltage sensor: YES
  • DFU button: YES
  • Firmware: Betaflight_4.4.2_JHEF745.HEX
  • Mounting hole spacing: 20*20mm*4mm
  • Maximum external size: 29mm*29mm
  • Weight: 4.8 grams

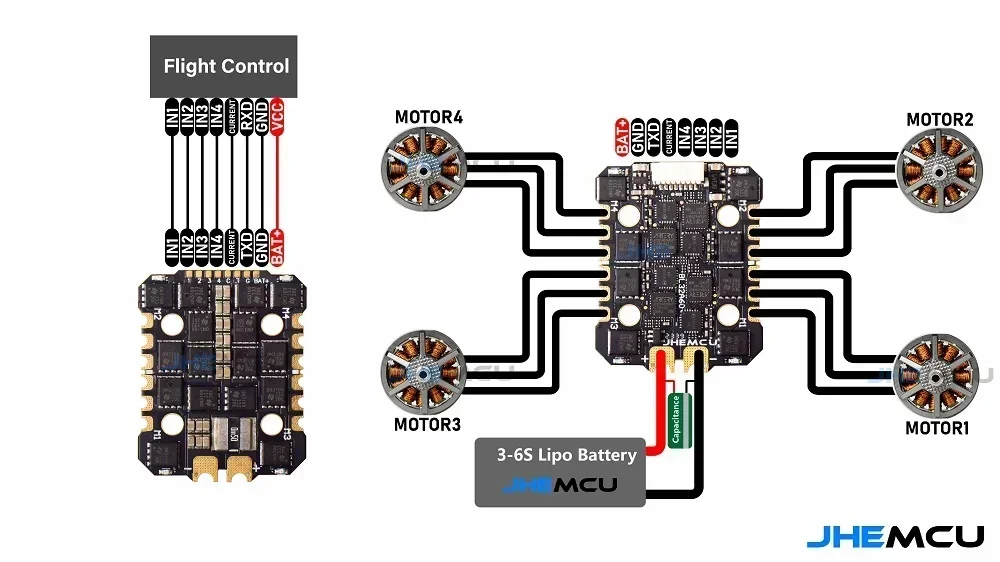

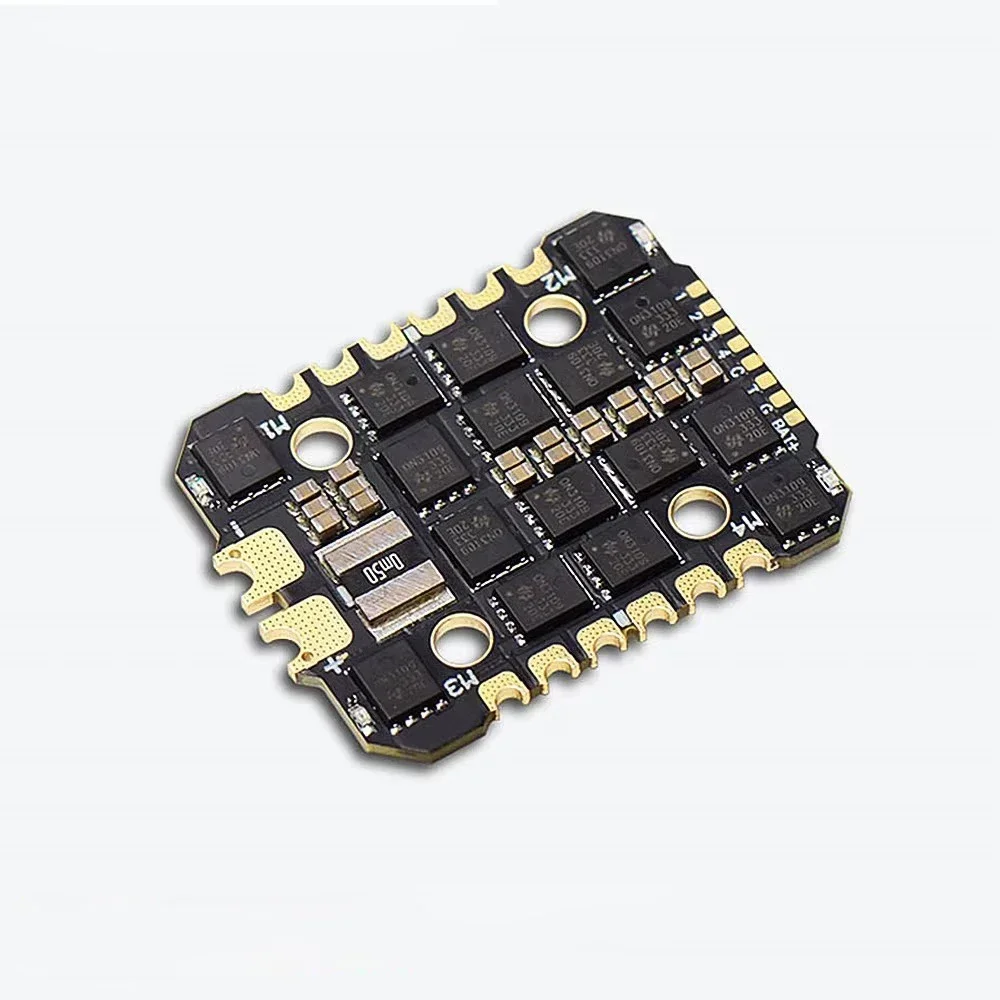

Product Name: AM32 60A MINI 4-in-1 ESC
  • Input voltage: 3-6S (11-27V)
  • Continuous current: 60A*4 ways
  • BEC: No
  • Ammeter: Yes
  • Mounting hole pitch: 20mm/M4
  • Overall Dimension: 42.8mm*34mm
  • Weight: 11 grams
