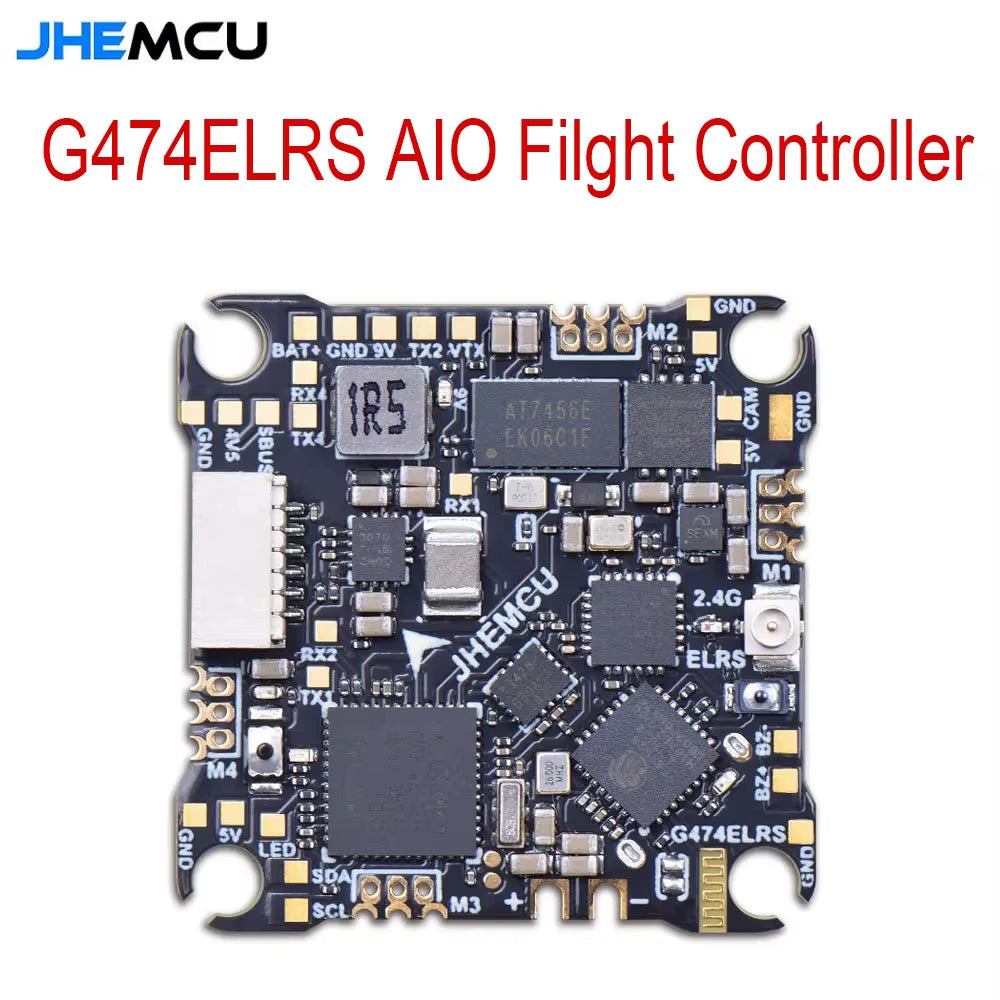

JHEMCU G474ELRS AIO Flight Controller Built-In 2.4G Receiver OSD 8MB Black Box 1-2S 25X25Mm for FPV Freestyle Drone

JHEMCU G474ELRS AIO Flight Controller Built-In 2.4G Receiver OSD 8MB Black Box 1-2S 25X25Mm for FPV Freestyle Drone

£30.61

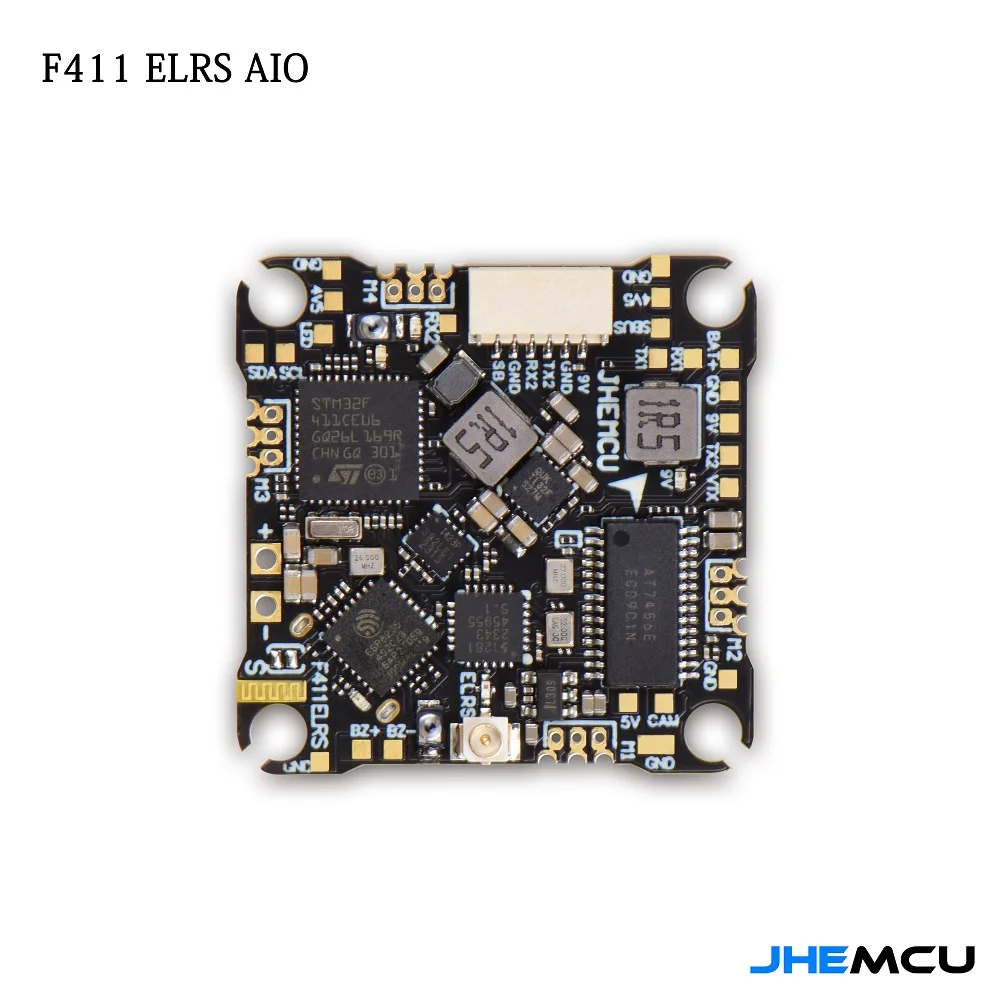

JHEMCU F411ELRS:

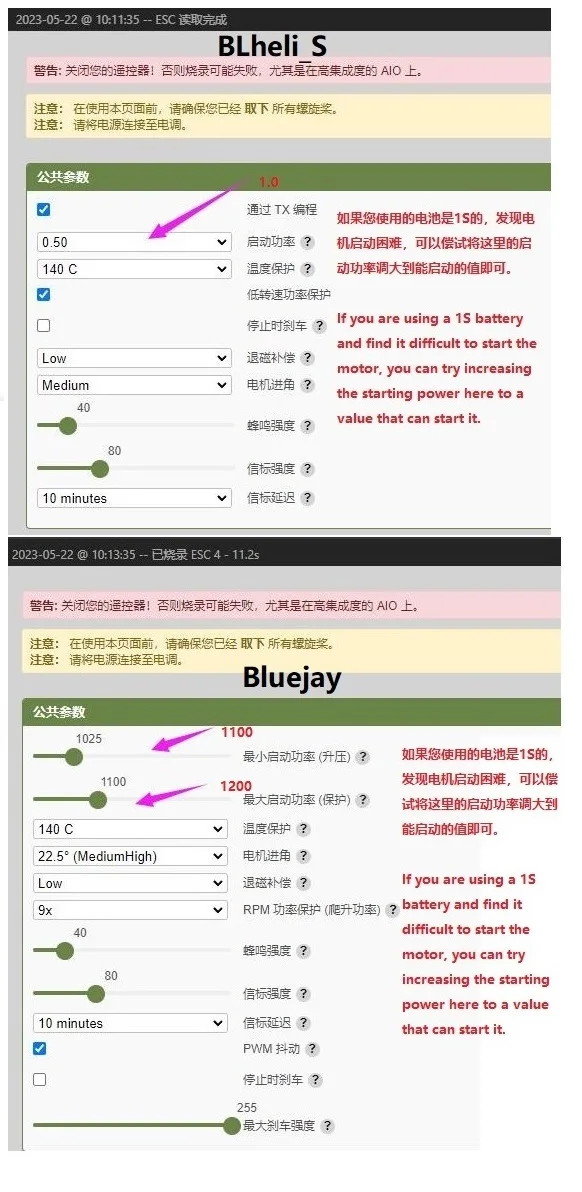

Using STM32F411 processor, ICM42688-P gyroscope, integrated OSD, built-in 5V/1.5A BEC lifting voltage circuit, built-in 9V/2A BEC boost circuit provides a stable 9V output for Tu Chuan sockets, use HD in 2S at 2S The sky will not be black on the end of the sky. The built-in independent ELRS 2.4G receiver supports 1-2S 12A brushless electrical roads. The circuit board has no black box and gas pressure meter module. If you choose a 1S power supply difficulty, please add the startup power value to the value that can be initiated appropriately. If you do not use built -in ELRS, you can also support an external SBUS receiver. You need to shorter the SBUS short -connected pad to block the ELRS receiver function integrated on AIO.
Technical Parameters:
Model: JHEMCU F411ELRS
Main -control chip: STM32F411CEU6 (100MHz, 512K)
Gyroscope: ICM-42688-P
Blood pressure meter: None
OSD chip: AT7456E
Black box: none
LED programming: support
BB ring: support
Input voltage: 1-2s
I2C interface: support
BEC: 5V/1.5A
BEC: 9V/2A
Camera input: Support
Serial control port: two roads (UART1 is used for internal ELRS receiver and external SBUS, UART2 is used for diagram)
Flying control firmware: Betaflight 4.4.3 JHEF411.HEX
Electric current: 12A * 4
Current meter: Yes
Firmware: BLHELI_S Z-H-30.HEX
Whether to support blue bird: support 24K 48K 96K
Flying control default electrical driver protocol: DSHOT300
Type of receiving machine: ELRS
Receiving frequency: 2.4G
Receiving machine signal protocol: CRSF
Receiving machine firmware: jhemcu EP24. V3.2.0
Whether to support wifi update ELRS firmware: support
Whether it is an independent receiver: Yes, a non -SPI method

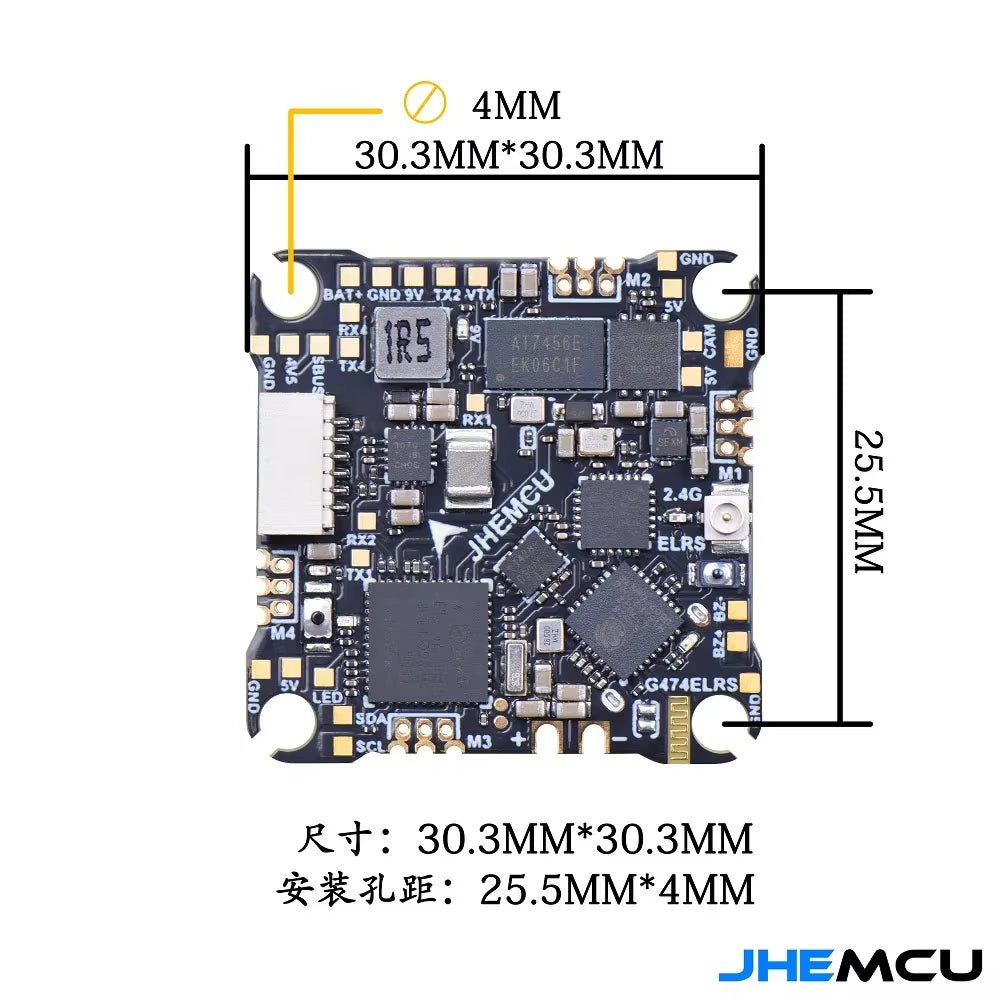

Conversion of holes and shocking balls: M3, 25.5*25.5mm
Maximum shape size: 30*30mm
Weight: 4.9G
