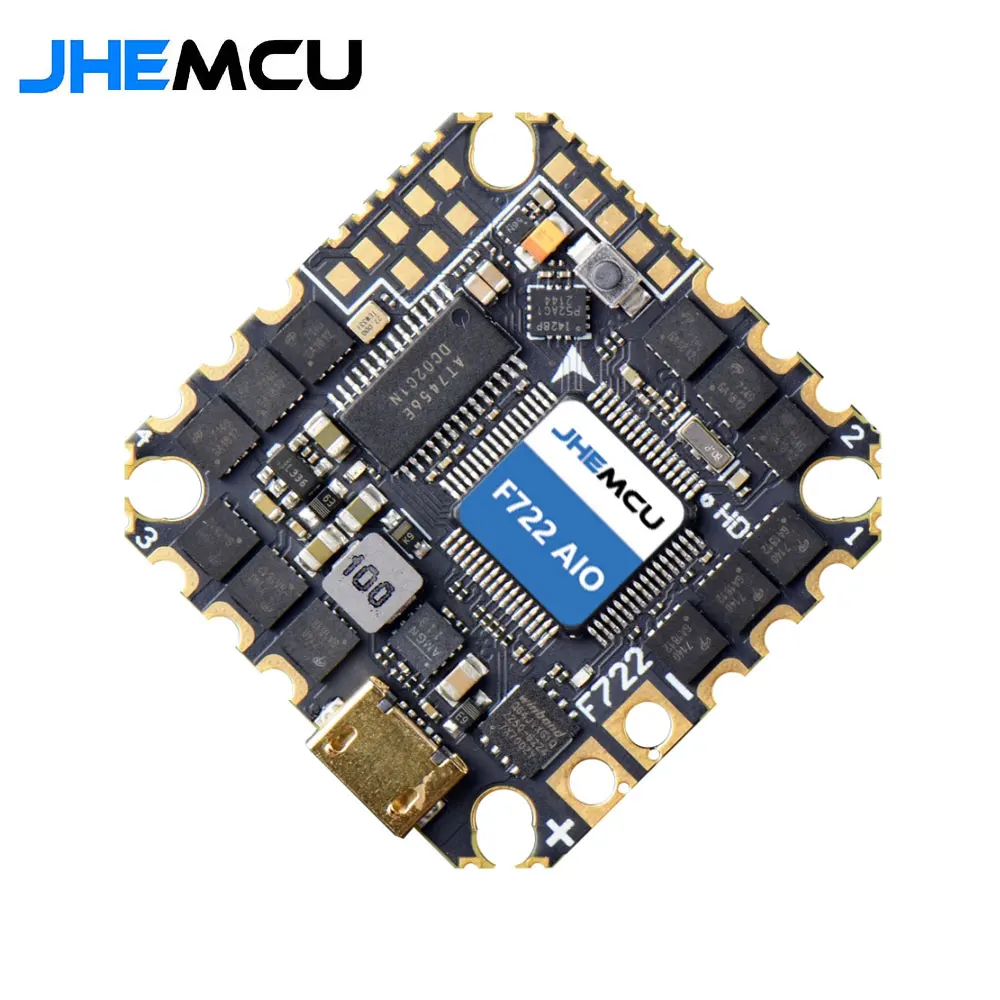

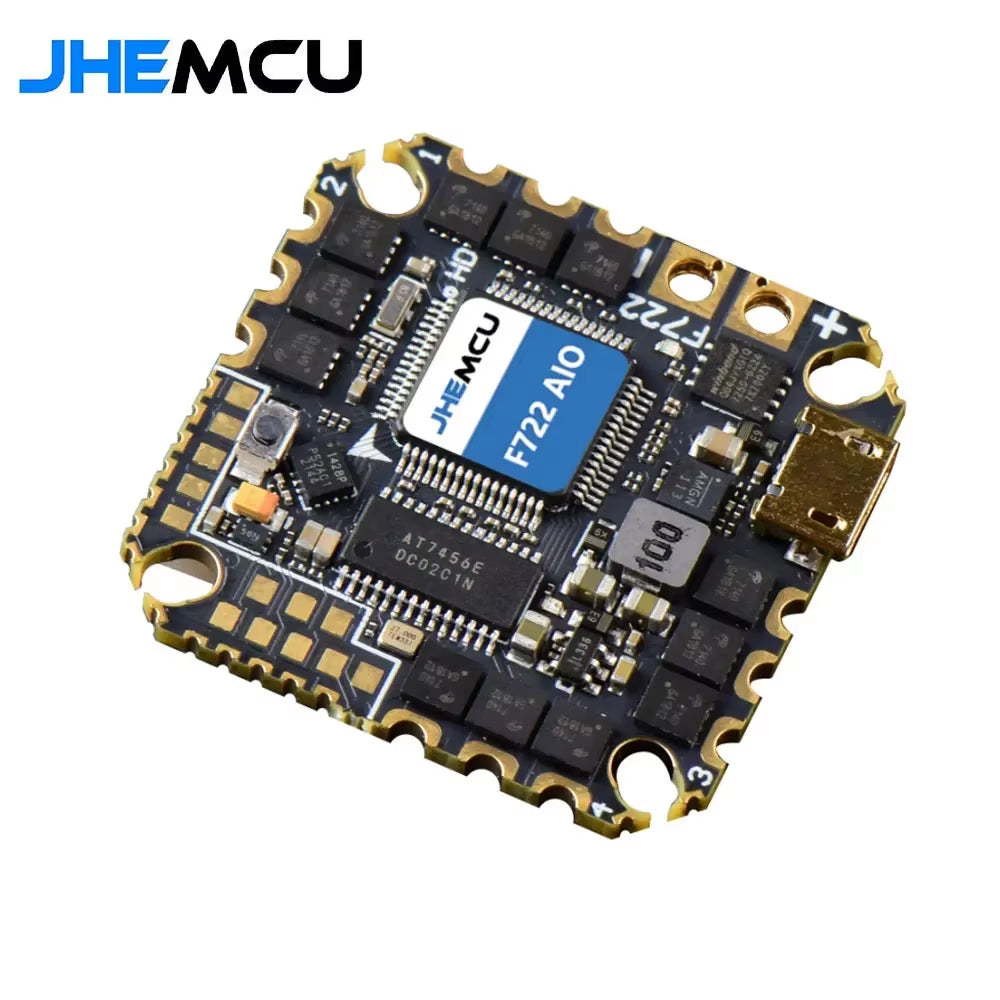

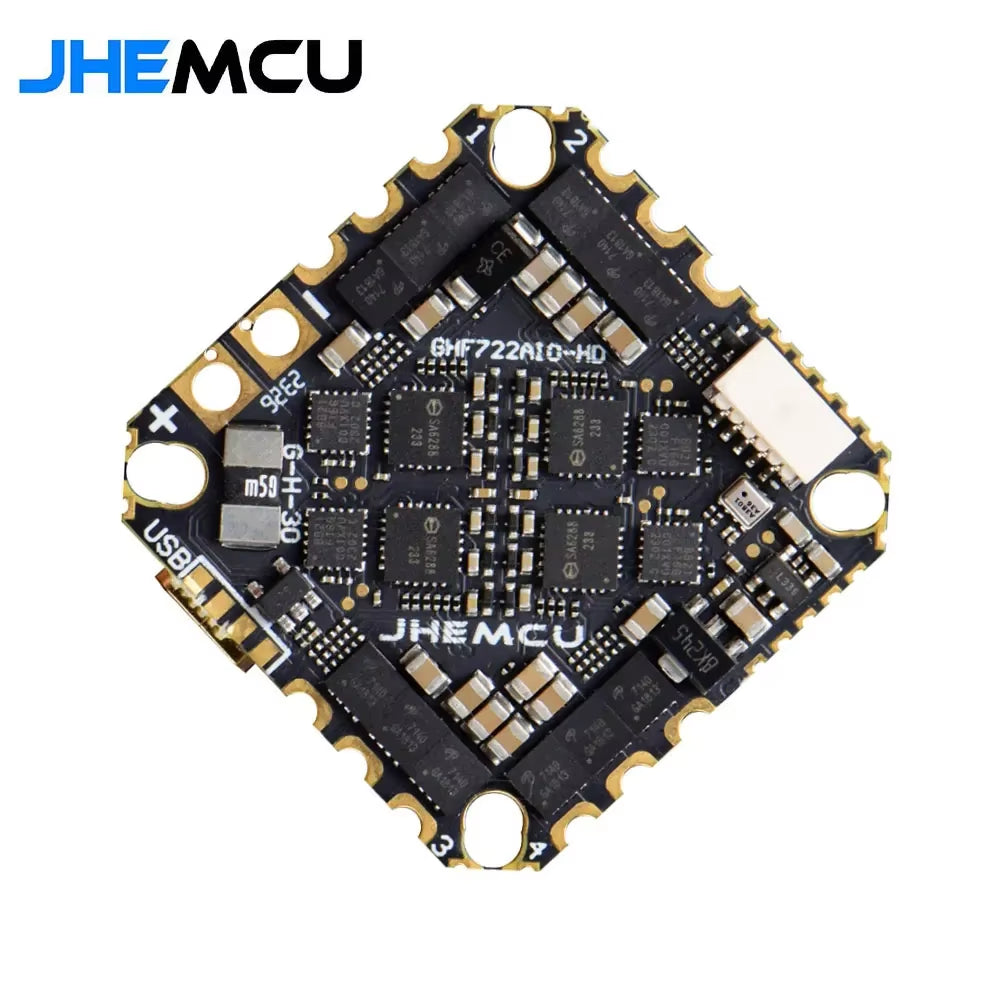

JHEMCU GHF722AIO-HD 40A AIO Flight Controller F722 FC Baro OSD Blackbox 40A 4In1 ESC 2-6S for RC FPV Freestyle Cinewhoop Drone
£42.02

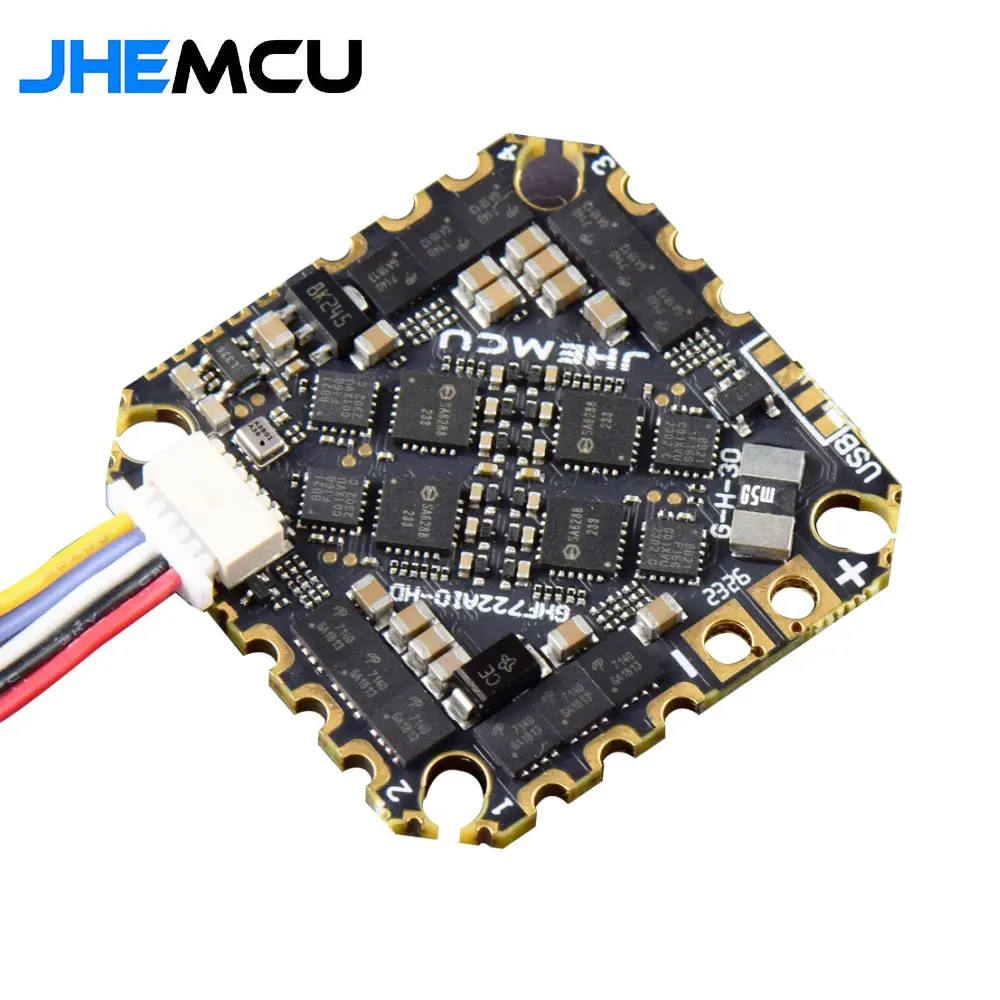

GHF722AIO-ICM has been discontinued, the new replacement model is GHF722AIO-HD, the new version and the old version of the difference is to increase the HD interface socket (can be directly plugged into the O3 Air Unit), increased external USB pads, built-in TVS tube without external welding TVS tube, re-layout of the ESC part of the layout, other basic no change.

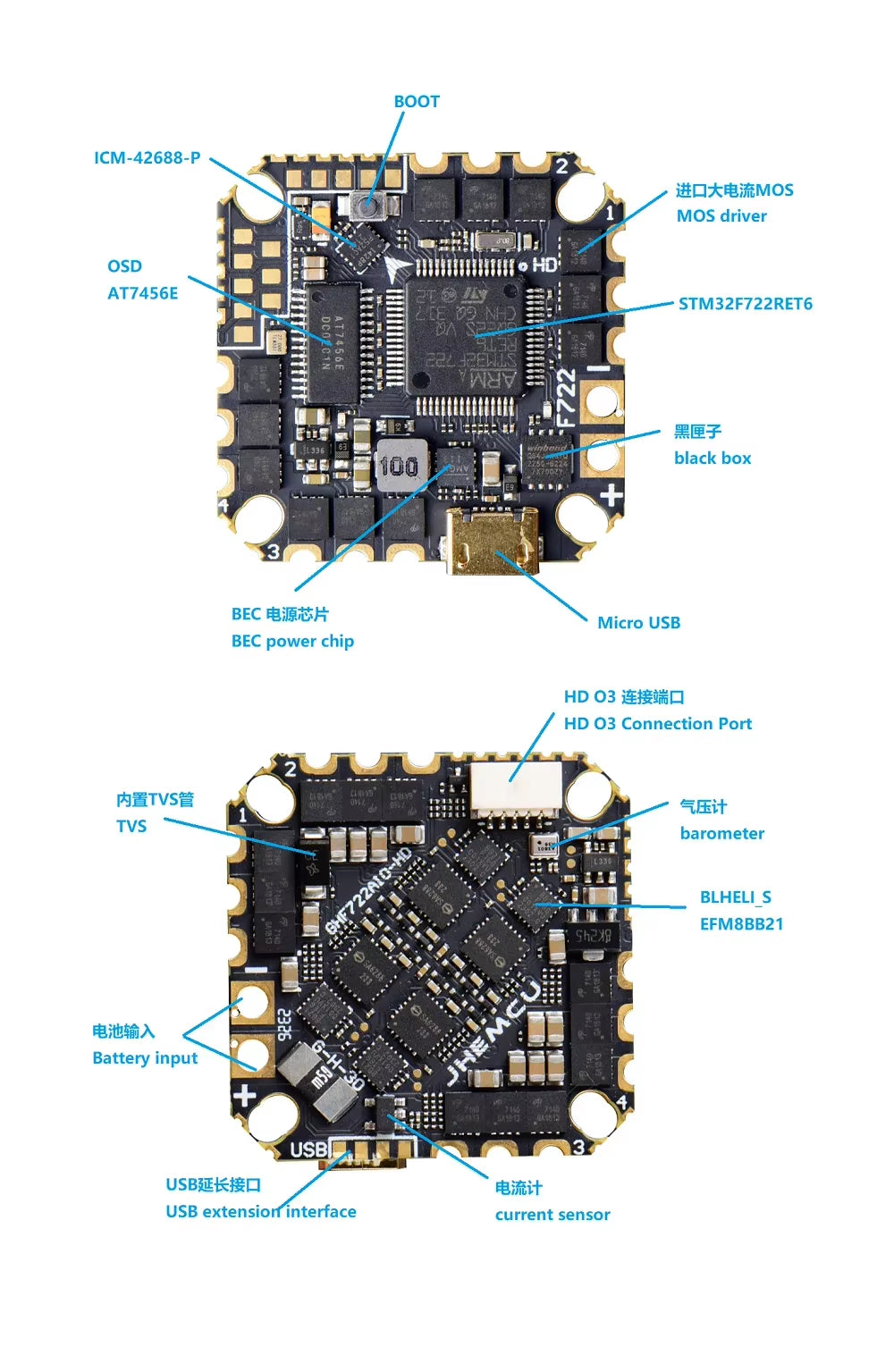

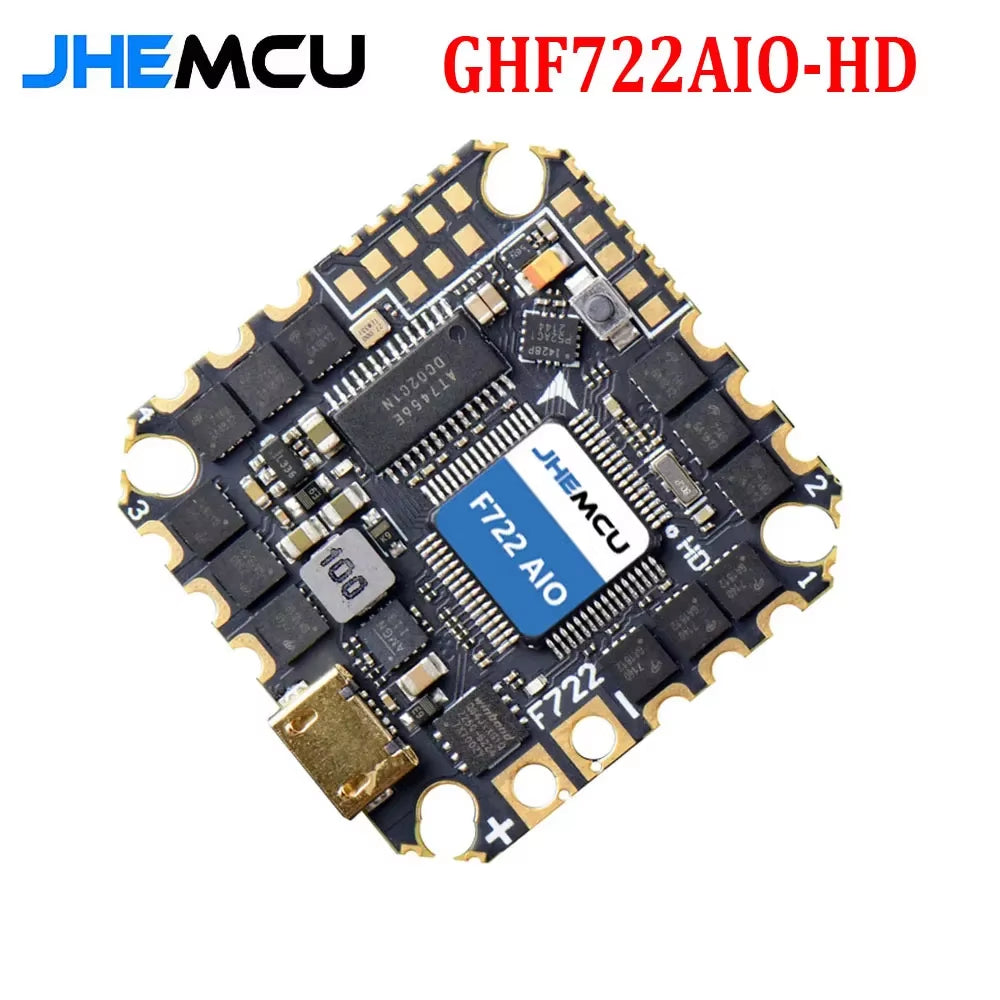

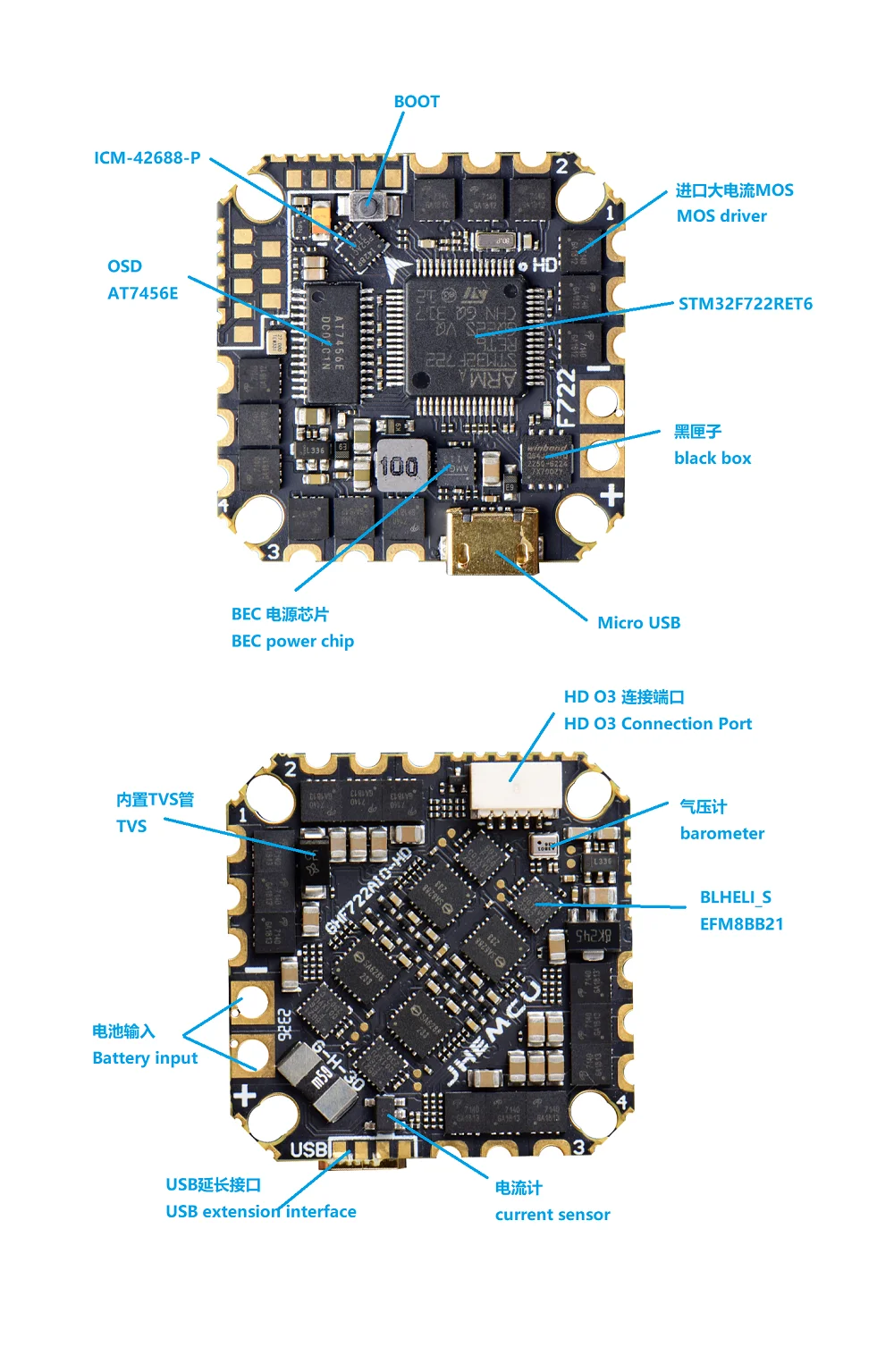

Model: GHF722AIO-HD
Main Control: STM32F722RE(216MHZ)
Gyroscope: ICM-42688-P
Barometer: Yes
OSD Chip: AT7456E
Black Box: 8MB
LED Programming: Support
BB Rattle: Support
Input Voltage: 2-6S
I2C Interface: Support
BEC: 5V/2.5A
Camera Input: Support

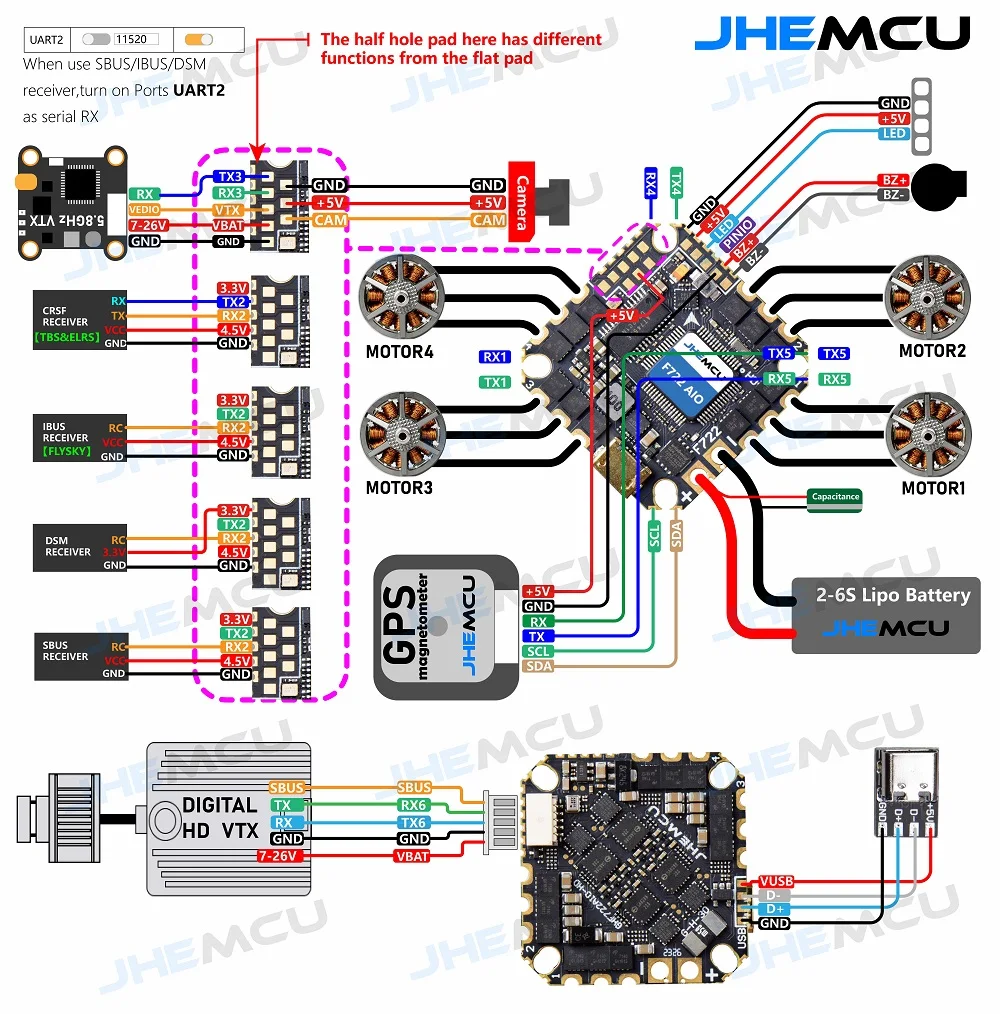

USART: UART1,UART2,UART3,UART4,UART5,UART6

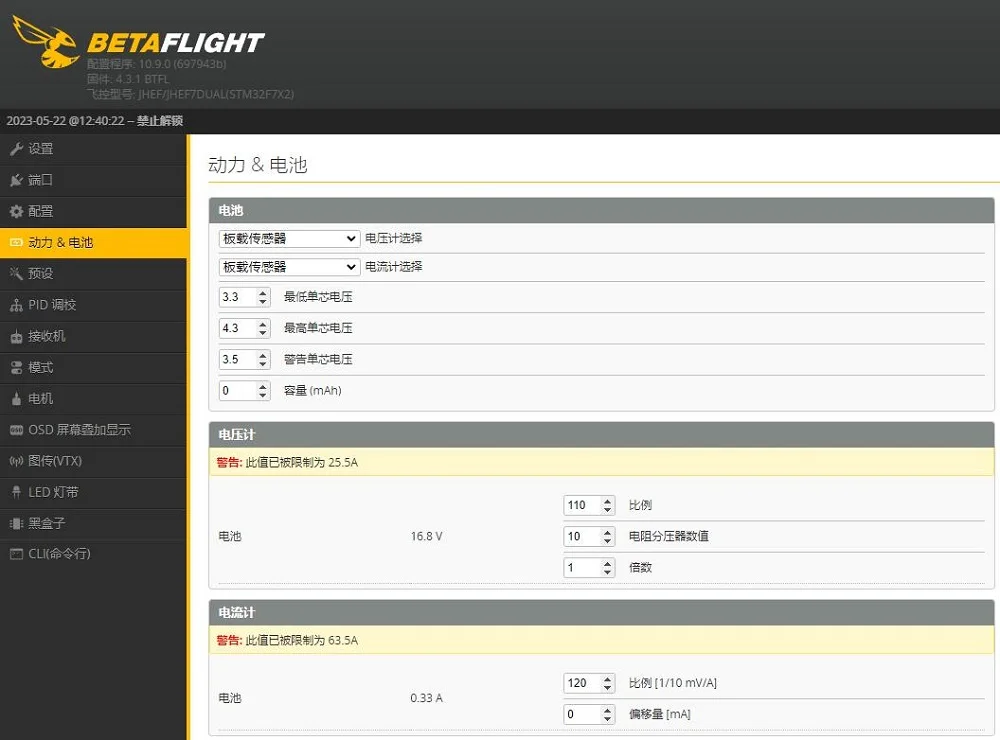

Flight control firmware: betaflight_4.4.2_JHEF7DUAL.HEX
ESC Current: 40A * 4
Ammeter: Yes
Firmware: Bluejay G-H-30.HEX (48K)
Whether to support BLHELI S: Yes
Default ESC driver protocol for flight control: DSHOT600
Mounting hole spacing: 25.5-26.5MM*3MM
Maximum external size: 33*33MM
Weight: 7.6g

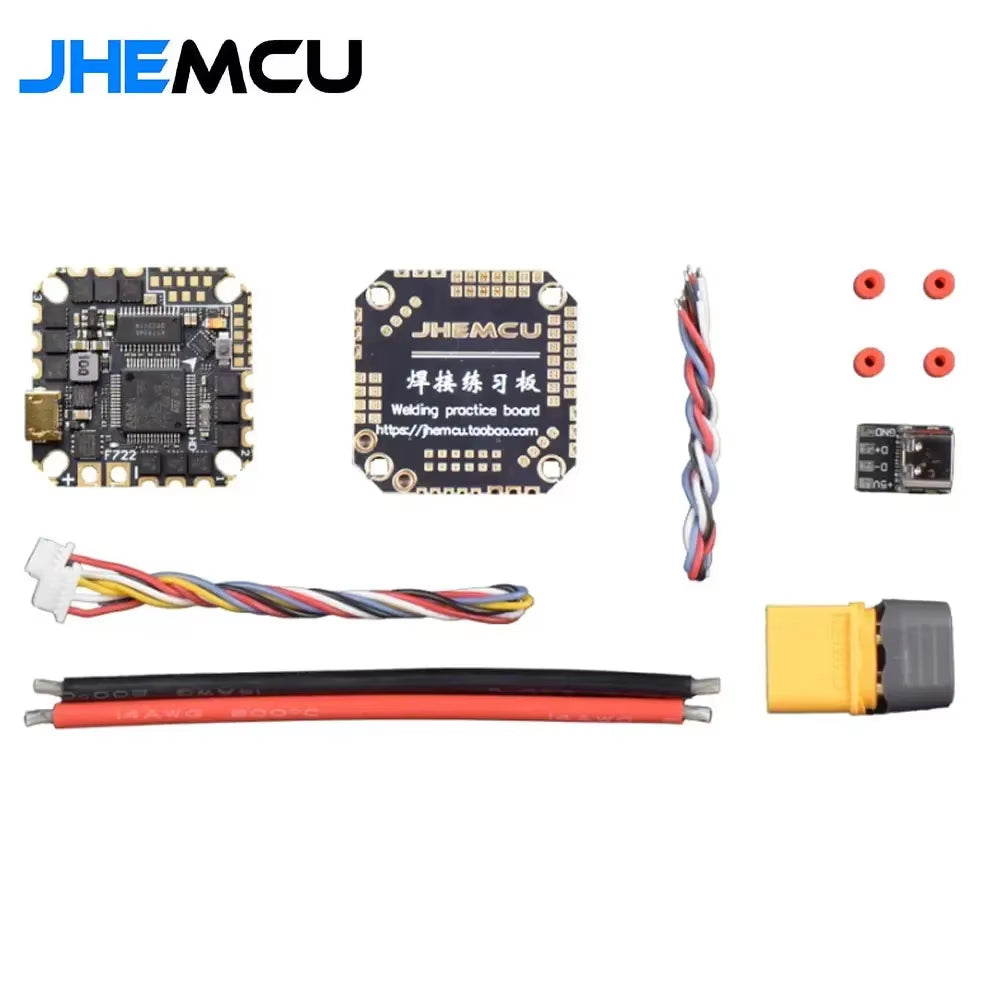

Packing List.
GHF722AIO-HD *1
Soldering practice board *1
HD O3 adapter cable *1
14AWG *2
XT60 *1
TYPE-C adapter board *1
TYPE*C Extension Cable *1
Shock absorbing ball *4
