Speedybee Nano 2.4G Expresslrs ELRS Receiver for FPV Freestyle Long Range Drones DIY Parts
£12.39
Specifications
Model |
SpeedyBee Nano 2.4GHz RX |
Name |
ExpressLRS Receiver |
Frequency |
2.4Ghz |
Antenna |

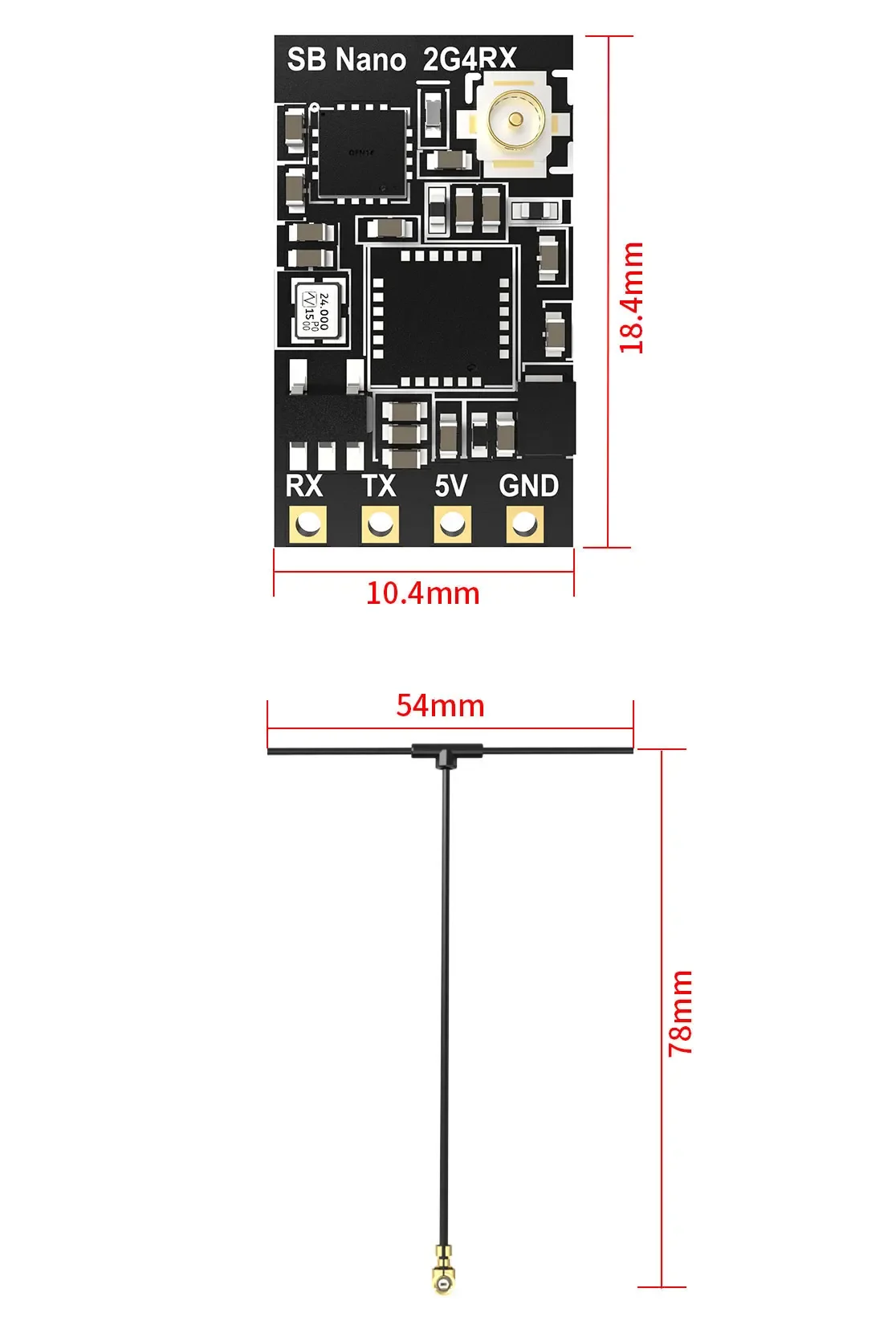

T-antenna (54*78mm, 0.6g) |
Chip |

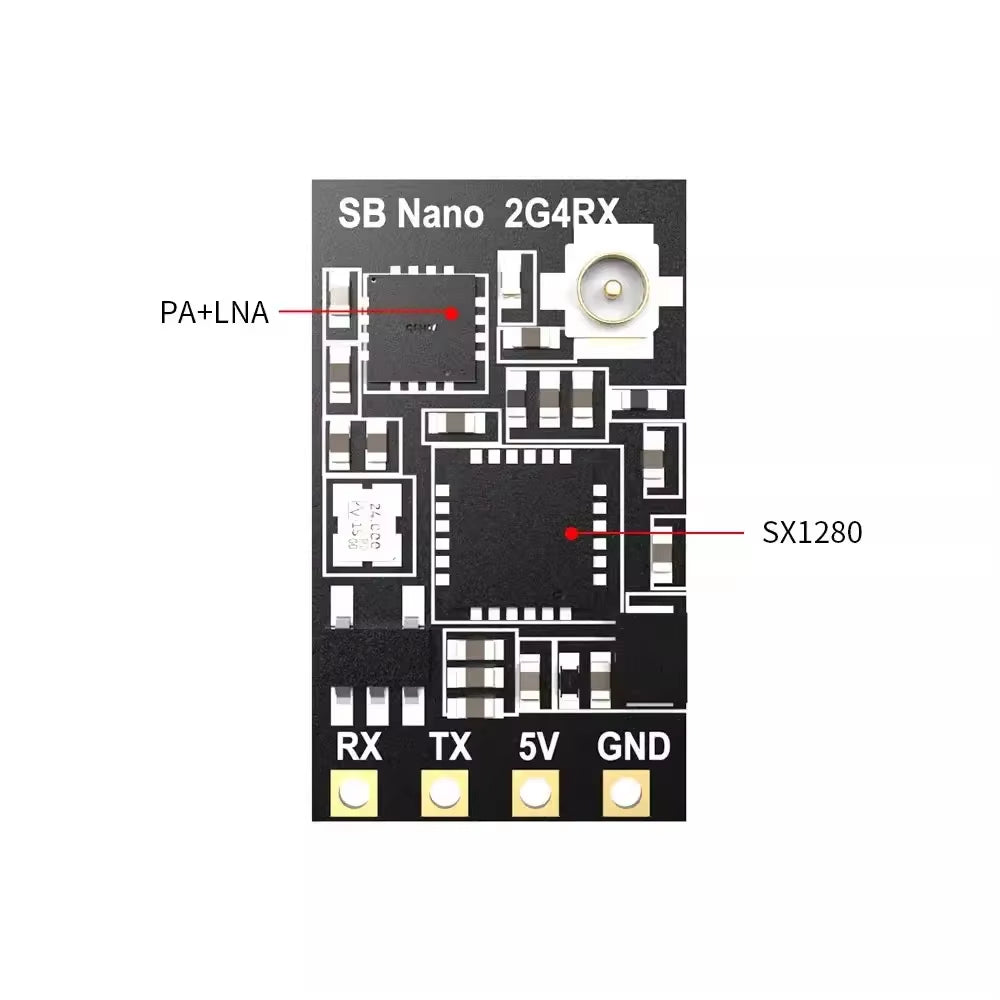

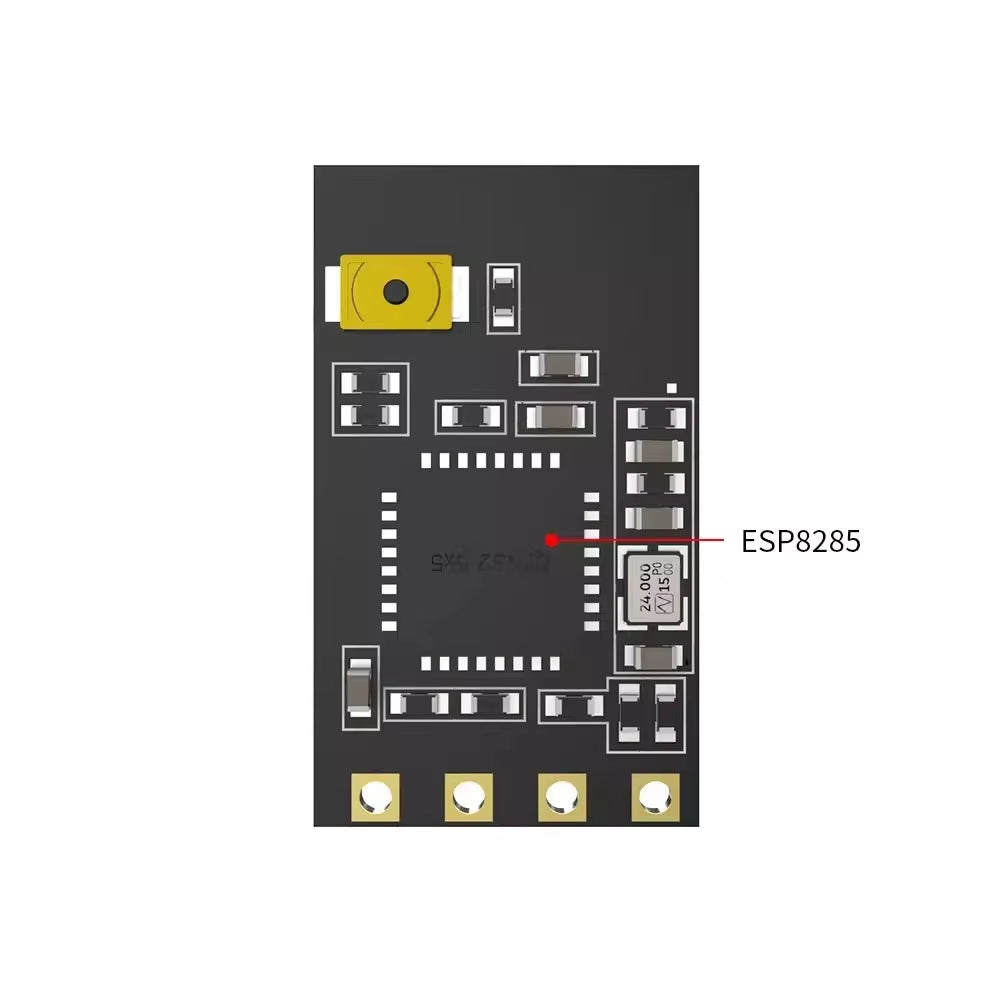

SX1280+ESP8285 |
Power |
100mW |
Input voltage |
5V |
Antenna connector |
IPEX1 |
Weight |
0.7 gram(without antenna) |
Dimension |
10.4mm*18.4mm |
Default Firmware |
SpeedyBee Nano 2.4GHz RX 3.3.1 |
Light indicator
Double red blinking |
binding |
Slow red blinking |
powering up but unlinked, no packages received from the transmitter |
Solid red |
receiver is connected, with signal received |
Fast red flashing |
Wi-Fi is turned on, and updating via Wi-Fi is available |
PS.
To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds |
Quick to cut off the power 3 times, it enters the binding mode |
